Mixed Laser Cutting Machine Akj1530h For Metal And Nonmetal - China

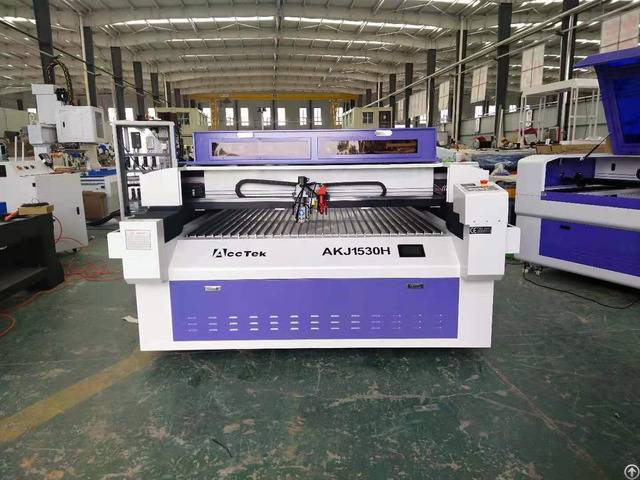

AKJ1530H is a combination of a laser head and a mixed cutting head.

The laser head with a 90W laser tube, which is mainly used for engraving the surface pattern of the sheet; the mixed cutting head with a 500W laser tube, in addition to cutting plates, it can also meet the needs of customers for cutting stainless steel in small quantities.

Let me introduce to you the configuration of this mixed cutting machine.

If you are also engaged in the furniture production industry, such a laser machine will provide you with great help.

Mixed laser cutting machine is called mixed laser cutting machine for metal and nonmetal.

Its biggest feature is that it can cut both metals and non-metals.

The metal materials that can be cut by the mixed laser cutting machine include stainless steel, iron plate, galvanized sheet, titanium plate, etc., and the non-metallic materials that can be cut include acrylic, density board, wood, sponge, cloth, cardboard, etc., and its application fields are very wide.

Configuration and features of AKJ1530H:

1 - Working size: 1500*3000mm;

2 - Ruida control system with LCD panel, more convenient operation; USB offline, the controller has better resistance to high voltage and antistatic ability;

3 - RECI W2 90W laser tube, compared with the laser tube of the same level, it has high efficiency and stable quality.

Long Lifetime up to 10, 000 hours; The SLW 500W laser tube is used for the cutting of plates, which fully meets the needs of customers for cutting 30mm MDF, and the cutting speed is fast.

4 - Taiwan Shangyin high-precision square rail, with stronger carrying capacity;

5 - Singapore imported 1*focus lens and 3*reflect mirrors;

6 - The laser head with red dot, can show you where the laser beam is when working.

The metal laser head with ball screw and motor transmission, with auto focus function.

When the laser hybrid cutting machine is cutting metal, the laser head is the selected follow-up laser head, so during the cutting process, the laser head can automatically adjust up and down as the plate to be cut fluctuates.

In this way, the distance between the focusing lens and the metal sheet to be cut can be ensured to maintain a constant focal length.

7 - Knife table and funnel device.

A funnel device is installed under the knife table to collect wood chips and other waste garbage on the table in a drawer built into the funnel.

After the board is processed, the garbage in the drawer is taken out and discarded to keep the processing environment clean and tidy.

This mixed laser cutting machine for metal and nonmetal can be widely used in the cutting of non-metal materials and metal plates, with smooth cutting edges, no burrs, fast processing speed, high precision and high efficiency.

Suitable for mass production in the furniture industry.

Operational speed, laser energy real-timeadjustable, and very easy to operate.
