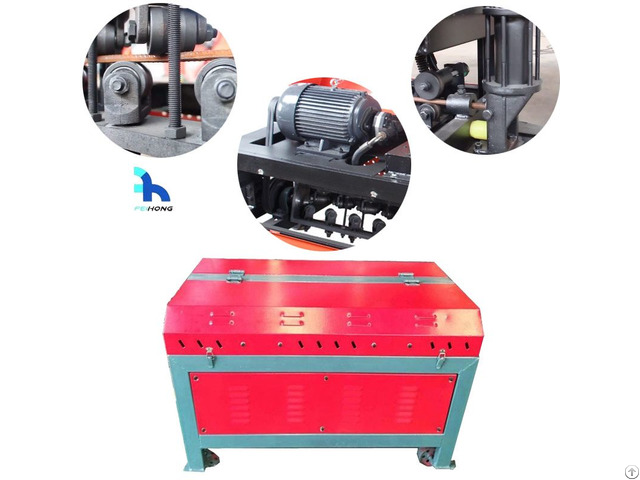

Mini Type Wire Straightening And Cutting Machine - China
price: 400.00 Dollar US$
Features 1 - Adopting microcomputer control, automatically straightening and hydraulic cutting the steel bar (round steel &screw steel).
2 - Fool-type operating system, easy to operate.
3 - Electronic digital ruler, without mechanical ruler.
4 - Small area occupation, moderate weight and it can be convenient to remove and pack.
5 - Multi-batch simultaneous input length and quantity, computer storage memory, efficient and convenient.
6 - Smooth operation, failure rate and easy maintenance.
7 - Adopting taper coordination, the feeding cylinder does not rebound.
With dual supports bearing counting frame, the meter is more accurate, the error is less than 5mm.
Parameters Model FHT3-10D FHT5-12D Wire straightening diameter(mm) Screw-thread steel 3-10mm, Round steel3-10mm Screw-thread steel 5-12mm Round steel 5-14mm Wire cutting sizing(mm) Infinitely adjustable infinitely adjustable Cutting speed(m/min) 42-48m/min 42-48m/min Wire sizing cutting error(mm) ≤1.5mm ≤1.5mm Straightness(mm/m) ≤±2mm/m ≤±2mm/m Pulling speed(m/min) 45, 65m/min 45, 65m/min Revolving speed(r/min) 1460r/min 1460r/min Power(kg) 9kW 9kW Work temperature(℃) -10-+50℃ -10-+50℃ Overall Dimension(mm) 1600*800*850mm(L*W*H) 1600*800*850mm( L*W*H ) Weight(kg) 350kg 350kg Working voltage(v) 380v 380v
Company Contact:
- Phone: +8615806593599
- Address: changjiangzhonglu , Qingdao , Shandong , China
- Email:
- Website: http://www.dfeihong.com
Published date: December 25, 2018 - Modified date: January 16, 2019
- Business Description: our main products: CNC Rebar Cage making Machine.
CNC Rebar Bending Center.
CNC Stirrup Bender.
CNC Rebar Cutting Production Line.
CNC Rebar Sawing & Thread Rolling Production line.
CNC Wire Straightening&Cutting Machine, steel wire mesh welding machine.
