Metal Deck Forming Machine - China

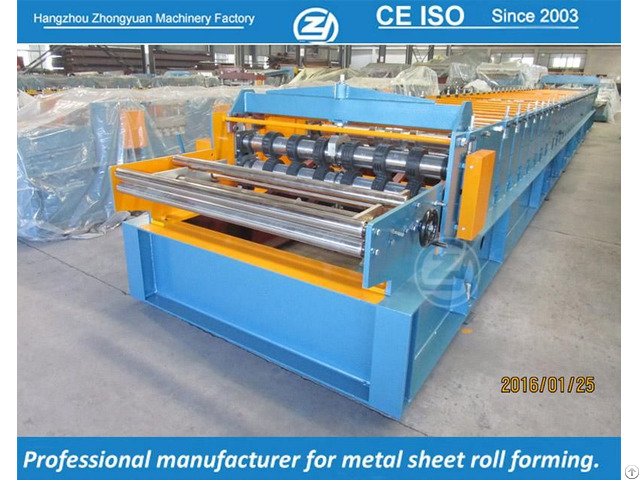

Metal Deck Forming Machine

Technical Data of Decking Roll Forming Machine

Suitable material Q235 color steel sheet;0.8-1.2mm, Forming speed about 18-20m/min

Power Requirement Main motor power: 11X2 Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of forming rollers No.

45 steel, plated with chrome on surface.

Material of cutter Cr12 mould steel with quench treatment, HRC58-60

Material of shaft High quality 45# steel with heat treatment.

Roller grinder milling.

Shaft diameter 82mm

Controlling system Mitsubishi PLC & converter

Total weight of machine About 16500KGS

Machine’s size about 26m×1.8m× 1.5m (Depend on final design)

Shipping 1x40GP and 1X20GP containers can load one machine Roll Forming Machine Product Application:

The metal deck produced by floor deck forming machine is used as decking of building; It has high strength with big wave length.

It adheres well to concrete.

Used on high building, it not only saves steel mold plate, but also reduces the weight.

With the same bearing capacity, it economized steel and cuts down investment accordingly.

steel coils and sandwich panels, Metal Deck Forming Machine, Metel Floor Forming Machine, Metal Roll Forming Machine China

Company Contact:

• Posted By: Hangzhou Zhongyuan Machinery Factory

• Phone: 8657182172966

• Address: No.228, Yongli, Nanyang Street, Xiaoshan District, Hangzhou City, Zhejiang, P. R.of China, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.zhongyuanforming.com

• Business Description: Company Information

  Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

  Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

  We are"All-in-house source" – from raw material to the final high-precision forming machine.

  Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site.

  So we can better control the machine quality and delivery time of machines.

  Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines, etc.

  We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

  Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania, Ethiopia, Gana, Guinea, South Sudan, Algeria, Niger, Philippines，Indonesiaï¼ ŒIndia, Russia, Azerbaijan and Kazakhstan.

  We have rich experience for metal forming machine solution, competitive price and excellent service.

  We will continue to do our best to supply perfect products and service for customers.

  Invite you to contact us for further information

  Competitive Advantage

  Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine.

  All are done in our factory.

  Quality and delivery time can be controlled here.

  1 - Our Focus is on our Customers

  We consult with each customer individually, and together develop the best solution for any application.

  Through this collaboration with our customers we strive to keep the solution effective, cost effective and timely.

  2 - With Zhongyuan products you save time and money!

  Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine.

  We have our precise tooling center.

  when roll forming machine must be delivered immediately, depending on customer's features, we can manufacture and deliver machine in only 5-8 weeks.

  3 - You can Rely on Our Zhongyuan Team!

  The dedicated staff at Zhongyuan is our key to success.

  We have engineers with experience more than 15 years in metal forming industry.

  Employees and their development are of fundamental importance to Zhongyuan.

  4 - Quality by Zhongyaun

  Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007 -

  Our Integrated Management System comprises Quality, Environment, Employment and Health Protection.

  When it comes to safety, there are no compromises.
