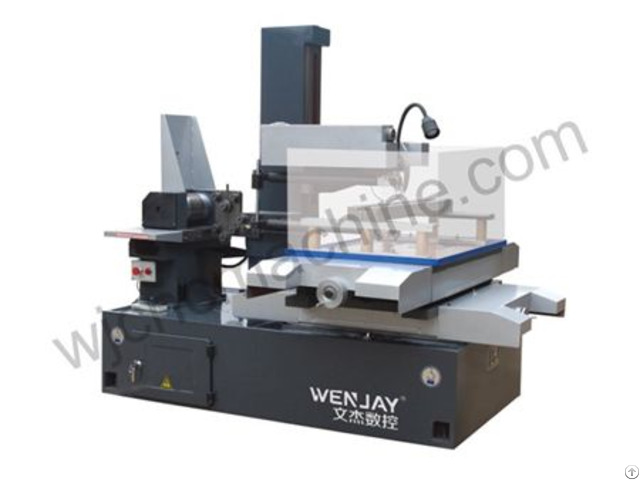

Linear Cutting-Big-Swing Taper Linear Cutting Machine Tool
Product category: Big-swing taper linear cutting machine tool
Product model: Big-swing 0-90°
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
Product description: Wenjie"s big-tapered linear cutting machine tool is characterized by large stroke, high speed, high precision, high degree of automation, heavy duty and strong specialty, and it is at the leading level at home and abroad, so that it is widely used in aerospace, aviation, military and other fields.
Invention patent: ZL201010151645.7, utility model patent: ZL201020164058.7 - Wenjie CNC big-tapered linear cutting machine tool has a good taste, high quality, super stability and low price!
Main features of Linear Cutting Machine Tool:
1 - It integrates the traditional VC taper structure composed of the upper plate, medium plate and bottom plate into a plate equipped with Type II guideway, which reduces the parts and simplifies the structure.
More importantly, it installs the traditional U-shaped guideway and V-shaped guideway on the same plane, which makes it easy to ensure its vertical accuracy and greatly reduces the difficulty in machining and assembly.
2 - Large Taper Wire-Cutting Machine changes the traditional layered suspended structure composed of cantilever, top plate, lower plate, bottom plate and upper arm to the supporting structure, and optimizes the mechanical properties, which have a positive impact especially on maintaining the precision of the guideway pair in the direction of UV.
3 - Pendulum shaft link mechanism is one of the decisive factors affecting the machining precision of large taper, while the unique precise pendulum shaft link mechanism is the guarantee of big-tapered cutting precision.
4 - The UV driving mechanism adopts the high-grade linear guideway of Taiwan HIWIN, precision ball screw and angular contact bearing structure to improve driving stability and accuracy.
5 - The dovetailed sliding block lifting structure is characterized by force balance and smooth guide, stable adjustment of guide frame interval, convenient operation and strong rigidity.
Type of large stroke linear cutting machine tool unit DK7740 DK7750 DK7763 DK7780 DK7780F
Worktable Size (W*L) mm 460×680 564×900 700×1060 850×1340 900×1500
X, Y-axis trip(Y×X) mm 400×500 500×630 630×800 800×1000 800×1200
U, V-axis trip(U×V) mm 320×320 320×320 320×320 370×370 370×370
Max load weight kg 500 800 1100 1500 2000
Max linear cutting thickness mm 400 500 500 700 700
Machined taper/work piece thickness 60°/200mm Taper model of swing guide Wheel
Z-axis elevation mode electric elevation
Type of guide track Slide guide
Electrode wire diameter range mm Ф0.10~0.20mm
Wire speed of Large Taper Wire-Cutting Machine m/sec 1~11.4m/sec 7 frequency conversion adjustable
Machining accuracy mm ≤0.015
Max cutting efficiency mm²/min ≥120
Optimum surface roughness um Ra≤3.0
Control mode X, Y, U, V stepper motor
Number of control axis Four-axis linkage
Min instruction unit mm 0.001
Power supply of high speed linear cutting machine tool Three-phase four-wire 380VAC/50HZ
Max operating current A 10
Machine tool power consumption kw ≤2
Working fluid DX-1 DX-4 Nanguang-1
Working fluid tank volume L 55
Work liquid filtrate way Strainer
Host weight kg 1400 2200 3000 5000 6000
Host outline size mm 1700×1400×1400 2100×1700×1740 2400×2250×1650 3000×2500×2000 3000×2700×2200
