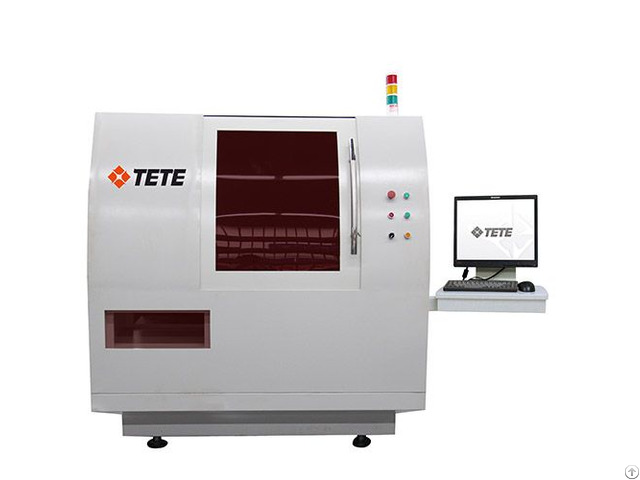

Laser Cutting Machine Sapphire Glass And Ceramic Cutter System With High Precision - China

Features 1 - With a high quality of light spot, it is particularly suitable for precise processing processes such as line marking, cutting or punching on materials such as metal materials (carbon steel, stainless steel, aluminum and aluminum alloy, copper or copper alloy, titanium or titanium alloy, nickel alloy) and brittle materials (like glass, sapphire, ceramics, silicon chip).

2 - Adopting a high-accuracy linear motor or an accurate screw, a metal or marble base, which can guarantee the accuracy of positioning and re-positioning.

3 - With an independently developed cutting software, a simple operation interface and a stable operating system, it can satisfy the demand for individuality.

4 - The processing area adopts a closed design and the visible window's radiation protection treatment can guarantee processing safety.

Specification

Wavelength 355nm, 532nm, 1070nm, 1030nm, 1064nm, Laser Frequency 12W, 15W, 20W, 30W, 50W, 100W, 500W, 700W, 1000W etc.

Cooling Mode Air cooling or water cooling (based on the specification of laser device)

Cutting head Supportive or TETE customized

Type of mobile platform XY linear motor+ marble platform

Max.

running speed of platform 800mm/s (with an accelerated velocity of 1G)

Range of XY workbench 450mm*350mm/610mm*530mm (can be customized )

XY positioning accuracy ±3um

XY re-positioning accuracy ±1um

Stroke of Axis Z ≤180mm (a smaller stroke can be customized)

CCD function Monitoring, positioning (optional)

CCD positioning accuracy ≤±5um (optionally based on the field of view)

Industrial dust collection system Vacuum absorption, ventilation, and dust removal

Dimensions ( L x W x H ) Weight 1300(L)*1300(W)*1750mm(H) 1500KG(based on the platform) Note: In the interest of technical progress, we reserve the right to make technical changes without notice.

FAQ 1 - Q: Where is TETE Laser Technology Co., Ltd located?

A: Shenzhen TETE Laser Technology Co., Ltd headquartered in Shenzhen, China.

Our manufacture base covered 200, 000 sq.

m2 in Pingshan, Shenzhen.

We support dealers and agents overseas for global market.

2 - Q: Are you trading company or manufacturer? A: We a laser machinery manufacturer dedicated to professional industry laser solutions and concentrates innovation and R&D in laser machines products.

3 - Q: There are so many machine types, which one should I choose?

A: We provides machine parameters in each product demo page, please kindly check technical data column.

It is important to compare all data before choose the best prototype.

Also, our sales team provides online services to resolve your confusion, feel free to contact us.

4 - Q: This is my first time buying your machine; I have no ideas about is your machines quality?

A: Each machine is strictly produced based on the standard of ISO9001 and CE certifications.

Our products have CE certifications verified by authorized agency.

5 - Q: Do you provide samples? Is it free or extra?

A: Yes, we are offering samples in free charge but not delivery fees, please contact us for more information.
