Lab Small Scale Spray Dryer - China

Nano Spray Dryer When doing experiments, researchers often use nano-materials.

However, it’s difficult to obtain nano-materials or micron-materials by quickly drying nano-solutions in the laboratory.

Pilotech YC-015 nano spray dryer is very suitable for particles, whose diameter ranges from 0.5 to 25 microns.

That’s why our nano spray dryer is widely used in various industries, including pharmacy, bioscience, food, material science, metal, and ceramics.

The drying chamber of YC-015 nano spray dryer is made of either high borosilicate glass or SUS304 stainless steel.

Each of these two materials has its own advantages: high borosilicate glass is heat-proof and easy to observe, while SUS304 stainless steel is durable.

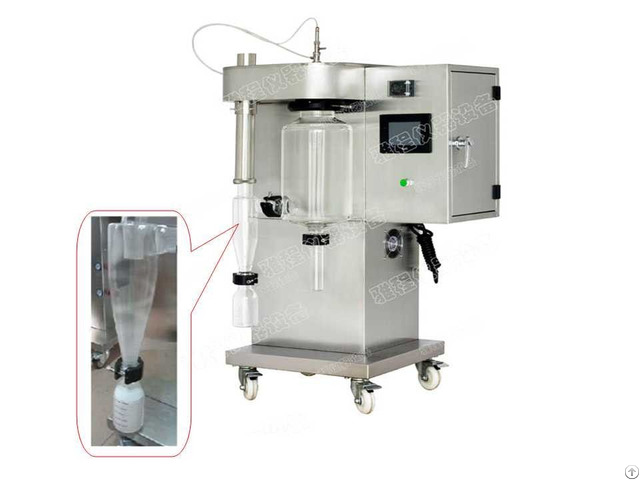

Components of our nano spray dryer include PLC controller, a touch screen, a drying chamber, a cyclone separator, and a receiving bottle, which are connected through clamps, bringing great convenience and easy to install.

Pilotech YC-015 nano spray dryer adopts a patented heating technology.

So, it’s heating process is uniform and steady.

The heater will never be burnt even if it runs for a long time.

Pilotech YC-015 spray dryer adopts an innovative concentric spray head, which will not be deviating from one side in the process of atomizing.

Thus, materials will not be sprayed onto the wall.

Pilotech YC-015 spray head is more suitable for materials with high viscosity and easy to disassemble and clean, and spray nozzle is made of SUS316L stainless steel.

The capacity of YC-015 nano spray dryer is 1500ML/H.

However, for a small amount of materials, 30ML of solution is enough to finish an experiment.

Thus, YC-015 nano spray dryer reaches a balance between the laboratory’s needs for processing a amount of materials and a small amount of materials.

If necessary, YC-015 nano spray dryer can be equipped with a tail gas dust removal device, which is optional to improve the recovery rate of material and to reduce impacts on the environment.

We have produced nano spray dryer since 2005 - YC-015 Nano Spray Dryer is of high stability, excellent controllability, high recovery rate, and low failure rate.

That’s why it is highly recognized by 1, 500 users across the world.

YC-015 nano spray dryer is provided with an HD tutorial video, in which its every detail is given.

This tutorial video explains in detail how to install, disassemble, clean, maintain and preserve YC-015 nano spray dryer.

If you enter “YC-015 spray dryer” into the search box on Google Scholar, you will see a lot of relevant papers.

And If your materials contain sugar, our low temperature spray dryer may be more suitable, then the material won’t stick onto the tank wall due to high temperature.
