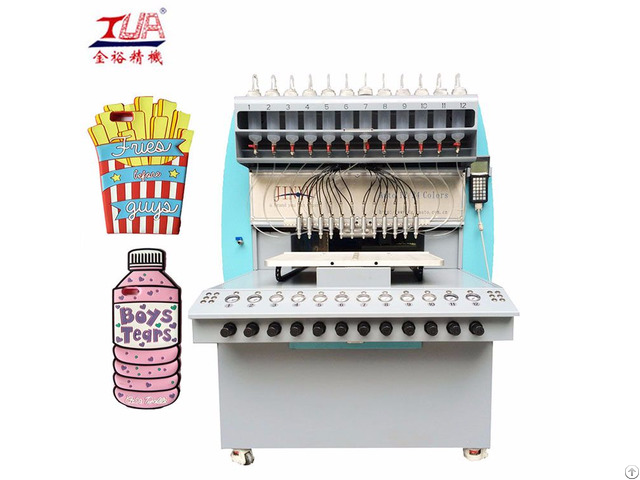

Jinyu 2017 Latest Automatic Silicone Mobile Phone Case Cover Dispenser Making Machine - China

application :

.

our dispensing machine applies to dispensing silicone rubber, pvc products, like labels, mobile phone case, coil and speaker outerring etc, keychain, fridge magnet, photo frame, paint, harfware badge etc.

specification: full automatic silicone dispensing machine Type JY-B02

repeat positioning control precision ±0.02

transport system servo motor screw driver

worktable size(mm) 620*370

power source specification single phase 220V

dispensing needle 12

total power (KW) 1.2KW

work stroke (mm) X-axes 600mm, Y-axes 360m, Z-axes 40mm

weight (KG) 500

speed (mm/s) 6m/min

Machine size (mm) 1100*1350*1550

main features of dispensing machine:

1 - Three axis linkage, high-speed continuous interpolation for arbitrary 3 dimensional curve, speed can up to 999mm/s 2 - High speed movement combined with dispensing head and bilateral circular file processing, pushing the machine talents to the limits.

3 - Shortcut button selected file, with the realization of complex multiple dropping processing 4 - For the machine parts, imported pure 30%, joint fittings occupy 40%, independent research and development to reach 30%, the machine configuration is exceptional, personalized global route 5 - The machine slide screw driver adopt Taiwan shangyin in original brand, alloy steel, wear resistance, high stability, by CNC high precision processing, precision can reach the national GB-1804-79, IT4 grade.

6 - unique advanced type dispensing valve, completely tailored according to customer demand, with high precision, output glue fast, high accuracy, the one and only adjust way from left and right, up and down front and behand, reach industry's first step.

7, Labor saving, improve the production efficiency, one automatic dispensing machine can replace 4-6skilled workers, one worker can operates several sets machines, greatly saving labors, some works can do as dozens of worklord, cut down the production phase .

solve the problems of labor shortage, more hard for practiced hand, hard manage, plant cover large, high input cost .

8, Special software, easy operating, multi-needles multi-colors, dropping accuracy .

8-24 colors, multi needles can dispensing at the same time .

Company Contact:

• Posted By: Dongguan Jinyu Automation Equipment Co,.Ltd

• Phone: +8613826948928

• Address: Xiangdong Industrial Zone , Dongguan , Guangdong , China

• Email:

• Website: https://www.jinyumachinery.com

• Business Description: mainly dealing with silicone, pvc trademarks gifts making equipment.

  Jinyu researched and developed full automatic dispensing machine, special silicone&rubber dropping , full automatic vulcanizing machine, is the best foundation of the industrial, jinyu equipment huve the fearures of labors saving saving electricity, saving management .

  Jinyu company sincerly look forward to the visiting of all the regular and new customers, Let is develop together.

  In 2000, founded pvc(plastic dropping)trademark equipment.

  In 2002, developed silica gai(silicone)trademark forming machine.

  In 2004, researched and developed hydraulic machine 30T, 50T, 63T, 100T.

  In 2006, researched and developed full automatic dispensing(dropping)equip ment.

  In 2008, researched and developed KPU shoes material making machine.

  In 2010, researched and developed Full automatic production line.
