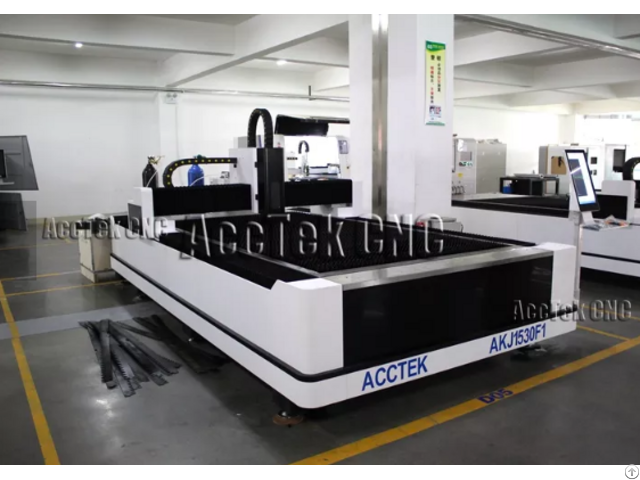

Jinan Laser 1530 1000w Cutting Machine For Metal - China

1 - When processing, the laser only consumes electricity and doesn’t need extra gas, bringing the minimum operation and maintenance cost

2 - Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn’t need adjusting and maintaining, which saves the costs and time.

In this point, the traditional laser is not comparable.

3 - The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2wavelength.

The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.

Advantages of fiber laser cutter for aluminum copper galvanized steel 1 - Excellent path quality: Smaller laser dot and high work efficiency, high quality.

2 - High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

3 - Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100, 000 hours;

4 - High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5 - Low cost: Save energy and protect environment.

Photoelectric conversion rate is up to 25-30%.

Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6 - Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;

7 Easy operations: fiber line transmission, no adjustment of optical path.

Technical parameters of fiber laser cutter for aluminum copper galvanized steel Working area 1500*3000mm

Control System Au3tech controller

Laser head Au3tech laser cutting head with auto follong system

Guide rail Taiwan HIWIN linear guide rail 30mm / Taiwan PMI option

Transmission Rack and pinion transmission

Electronic Components French Schneider

Motor Taiwan Delta servo motor

Controller box Independent box with air conditioning

Max Cutting Speed 35m/min

X axis max speed 65m/min

Y axis max speed 100m/min

Z axis max speed 30m/min

X axis max acceleration 1G

Y axis max acceleration 1G

Cooling Way Water Cooling

Min line width 0.1mm

Power Requirements 380V, 50/60Hz, 16A

Continuous Working Time 24Hours
