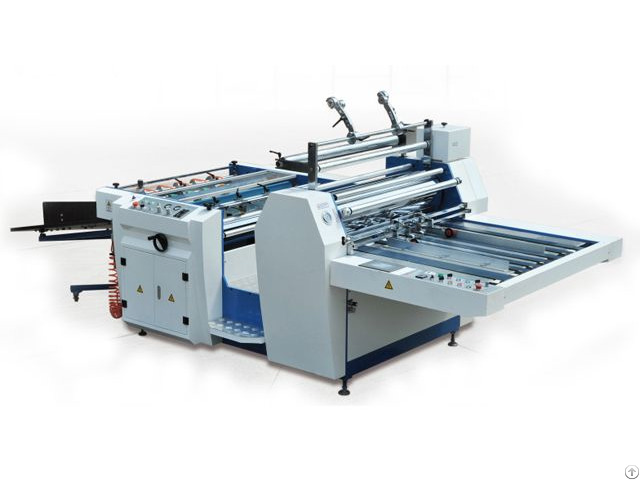

Improved Semi Auto Laminating Equipment Model Yfmb L - China

Configuration:

- SCHNEIDER frequency inverter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly.

- Enlarged chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.

- SCHNEIDER PLC system realizes automatic paper separation, breakdown alert for self-protection etc.

- Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.

- Three separating systems are available for different specifications of sheets and film: 1) Flail cutting system 2) serrated perforating wheels 3) carborundum grinding wheel to laminated film.

- Perfected tracking adjusting system makes traction adjustment more convenient and efficient.

- Anti-curvature device and vibrating paper collector ensure paper collection more regular and convenient.

- Slip structure with aisle which convenient to maintenance.

- The vibration collecting table.

- Optional device: electromagnetic heating system with surcharge.

Main technical parameter:

Model: YFMB-720L / YFMB-920L / YFMB-1100L

Max.

paper width: 680mm / 880mm / 1040mm

Paper thickness: 100-500gsm

Laminating speed: 0-30m/min

Gross power: 20kw / 22kw / 24kw

Total weight: 1700kgs / 1900kgs / 2100kgs

Overall dimension: 4600*1560*1500mm / 4600*1760*1500mm / 4600*1960*1500mm
