Improved Automatic Laminating Machine Model Yfma-l - China

Features:

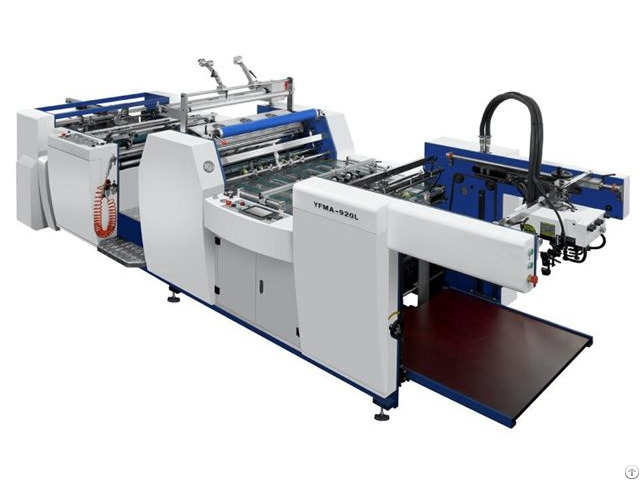

YFMA-L series fully automatic laminators are our newly designed thermal film lamination machines.

This lamination machine is composed of feeding system, laminating system, cutting system, paper collecting and rewinding system.

The electric and pneumatic devices are controlled by programmable control (PLC) system.

And the operator can operate the machine easily by touch screen.

Heating roll adopts built-in heating system which has excellent heating remaining property to stabilize laminating temperature and make it more precise.

This machine centralizes the features of compact structure, high automation and humanized operation design, is an excellent choice for large and medium-size enterprises.

Main technical parameter:

Model: YFMA-560L / YFMA-720L / YFMA-920L / YFMA-1100L

Max laminating size(W*L): 560*820mm / 680*940mm / 889*940mm / 1050*1200mm

Min laminating size (W*L): 210*260mm / 210*260mm / 210*260mm / 300*300mm

Paper thickness: 105-500gsm

Max.

film roll diameter: φ300mm

Total power: 20kw(380V AC3 50/60HZ) / 24kw(380V AC3 50/60HZ) / 24kw(380V AC3 50/60HZ) / 26kw(380V AC3 50/60HZ)

Laminating speed: 5-60m/min

Dimension: 4800*1450*1750mm / 5100*1550*1750mm / 5320*1750*1750mm / 6100*1950*1750mm

Machine Weight: 1600kgs / 1800kgs / 2000kgs / 2200kgs
