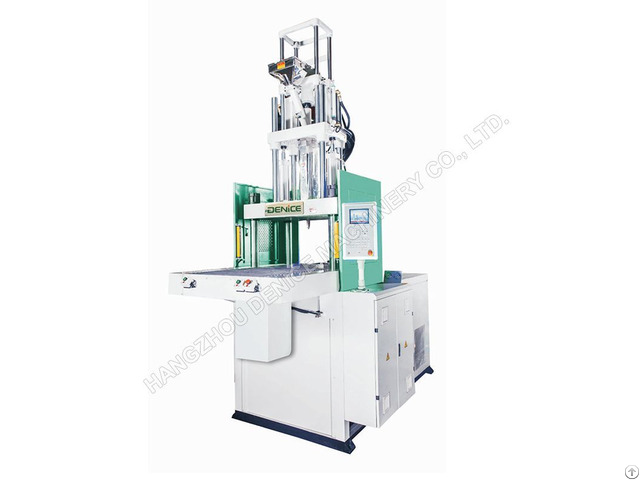

Hybrid Vertical Injection Molding Machine Dv 1600s - China

hybrid vertical injection molding machine DV-1600S If You Have Any Question On Hybrid Vertical Injection Moulding Machine, Hybrid Vertical Injection Molding Machine, We Will Give The Professional Answers To Your Short Questions.

Single Slide Table Style of DV-S Series:

* Vertical four column clamping, vertical injection, ease to put and take out inserts.

* Single slide design, item put and take out of the work area, which shares ease operate, high safety character.

* Four column single slide table machine (1 upper mold, 1 bottom mold)

We are injection molding machine manufacturers.

Specification

Model Unit DV-1200S

( Injection Unit ) Screw diameter mm Ф46 Ф52 Maximum injection pressure Kg/cm2 2193 1716 Theoretical shot volume cm3 365 467 Maximum shot weight(PS) g/Oz 325(11.4) 415(14.6) Injection rate cm3/sec 123 157

( Clamping Unit ) Clamping force ton 120 Sliding Table size mm 590×700 Sliding Table Stroke mm 760 tie bar distance mm 600×400 Minimum mold thickness mm 200/300(Can be customized according to customer requirements) Opening stroke mm 300 Open daylight mm 500/600(As required) Ejector force T 4.0(Can be customized according to customer requirements) Ejector stroke mm 73

( Others ) Pump motor power Kw 15 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 7 Total wattage Kw 22 Oil tank capacity L 400 Machine weight (approx.

) T 6.8 Machine dimensions(approx.

) m 3.5×1.1× 3.6 Specification

Model Unit DV-1600S

( Injection Unit ) Screw diameter mm Ф50 Ф55 Maximum injection pressure Kg/cm2 1856 1534 Theoretical shot volume cm3 471 570 Maximum shot weight(PS) g/Oz 420(14.8) 509(17.9) Injection rate cm3/sec 157 190

( Clamping Unit ) Clamping force ton 167 Sliding Table size mm 640× 800 Sliding Table Stroke mm 800 tie bar distance mm 660× 630 Minimum mold thickness mm 250/350(Can be customized according to customer requirements) Opening stroke mm 300 Open daylight mm 550/650(As required) Ejector force T 4.0(Can be customized according to customer requirements) Ejector stroke mm 115

( Others ) Pump motor power Kw 18.5 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 10.8 Total wattage Kw 29.3 Oil tank capacity L 650 Machine weight (approx.

) T 7.5 Machine dimensions(approx.

) m 3.9×1.7× 4.5

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
