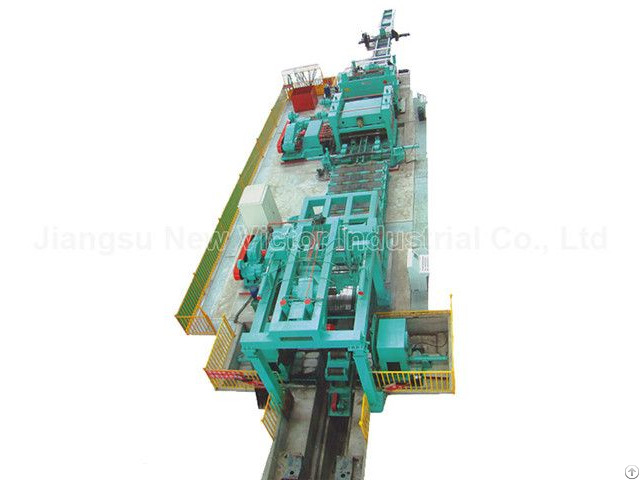

HR Coil Cut to Length Line

This series of HR coil cut to length line is applicable to coils of various specifications.

This HR Coil Cut to Length Line of HR coil cut to length line is applicable to coils of various specifications.

It is used to cut the raw coils into required length and width after the process along with uncoiling, flattening and cutting.

This series of production line is featured in reasonable layout, automatic design, easy operation, high production efficiency.

This production line consists of loading cart, un-coiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, shearer, belt conveyor, discharger, stacker, discharger cart, servo transmission system and hydraulic system etc.

Machinery model VZC 1.0-6.0 x 2000 VZS 2.0-8.0 x 2000 VZS 3.0-12.0 x 2200 VZS 4.0-16.0 x 2200 VZS 6.0-20.0 x 2200 VZS 8.0-25.0 x 2200

Coil width 900-2000mm 900-2000mm 900-2200mm 900-2200mm 900-2200mm 900-2500mm

Coil thickness 1.0-6.0mm 2.0-8.0mm 3.0-12.0mm 4.0-16.0 mm 6.0-20.0mm 8.0-25.0mm

Coil weight 30T 30T 35T 35T 35T 35T

Line speed 0-28m/min 0-28m/min 0-25m/min 0-25m/min 0-18m/min 0-18m/min

Shearing precision ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm

Shearing length 1000-6000mm 1000-8000mm 2000-12000mm 2000-12000mm 2000-12000mm 2000-12000mm

Equipment space 26 x 9m 28 x 9m 35 x 10m 38 x 10m 42 x 11m 45 x 11.5m

Power 110Kw 140Kw 220Kw 280Kw 420Kw 480Kw
