Hot Rolled Bar Outer Diameter Measuring Instrument Gdc J2400 Jx - China

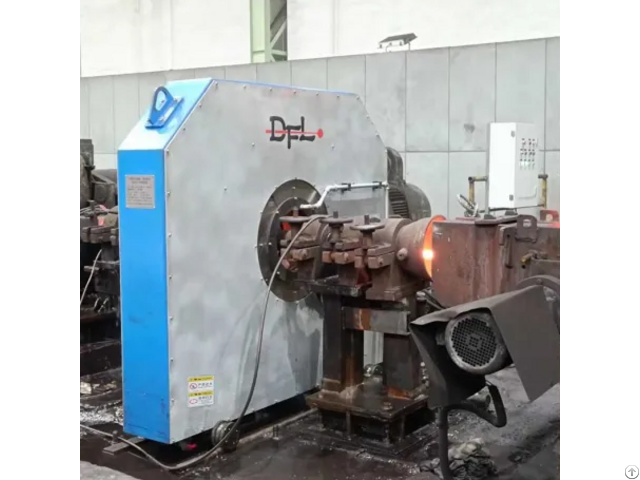

Hot rolled bar outer diameter measuring instrument GDC-J2400-JX

Purpose: Real-time online inspection of geometric dimensions of high-speed wire rods, square steel, flat steel, etc.

in a red-hot state, and transmit the inspection results to the display terminal in real time.

When the measurement data is abnormal, the system will issue an audible and visual alarm.

Provide intelligent appearance and dimensional inspection services for rolled steel.

measured object varieties: rods and wires, square steel, flat steel

Measurement principle: laser scanning method;

Measurement method: rotary measurement;

Measurement frequency: 800-1600;

Rotation speed: 30 rpm;

Installation method: fixed or mobile The entire set of equipment comes standard: control cabinet, measuring vehicle, electrical control box, LED display, cooling and dust removal system and supporting facilities.

Adaptable rolling speed: ≤120m/s

Adaptable rolling temperature: ≤1200℃

Measuring range: 5-360mm

Allowable deviation: ≤±0.06

Installation location: after intermediate rolling mill or finishing rolling mill Diameter measuring equipment is used to accurately determine the diameter of various objects, from small mechanical components to large industrial cylinders.

These devices are crucial in quality control, manufacturing processes, and research applications where precise measurements are essential.
