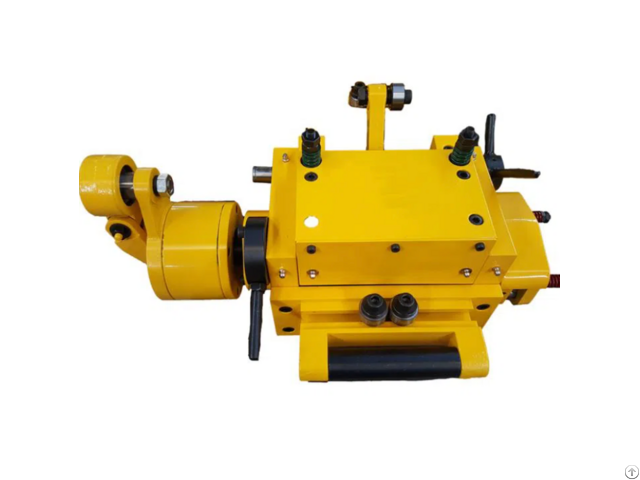

High Speed Mechanical Roll Feeder - China

Features and Structure of High Speed Mechanical Roll Feeder 1 - Unilateral bearing Enchased cemented carbide alloy, and equip with roller bearing, it have good abrasive resistance, stability, accuracy and long lifetime.

The gear is hardened to HRC60 after heat treatment and grounded to the best transmission accuracy.

2 - Roller The roller is light and lower turning inertia with hollow design.

It can stop quickly and have high feed accuracy.

The roller is hardened to HRC60 after heat treatment and grounded for the best rigidity, durability and wearability.

3 - Disk Brake Apply best brake lining disc for best accuracy, durability and stability.

4 - The anti-reversing device A) The structure is same as unilateral bearing.

It can control the down roller accurately and prevent the roller reversing even for long time.

Thus it can improve the stability and accuracy.

B) The brakes will not out of control by the splashed waste oil with the anti-reversing device.

Generally the waste oil will cause the down roller reverse when the press machine is punching.

C) It will not cause high heat.

D) Best wearability with cemented carbide alloy and roller.

E) The working method is circular moving, and not like guiding by 4PCS pin in straight line moving.

So it will not be blocked.

F) With lower friction the torsion it required will be reduced correspondingly, so the transmission device will have longer lifetime.

G) High productivity.

The speed with anti-reversing device can be reached to 30m/min.

In general it is 20M/min.

Efficiency can be increased about 50%.

H) Special structure brings long lifetime.
