High Quality Sand Recycling Washer - China

LZZG sand washers adopted advanced technology of high efficient sand washing according to practical conditions of sand industries to meet the actual requirements of users.

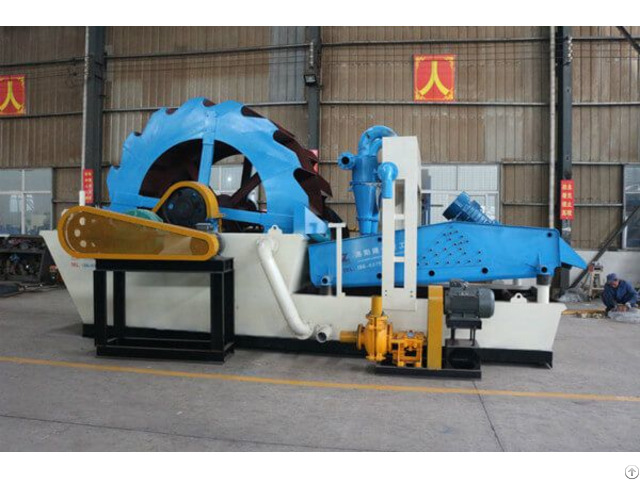

LZZG combined wheel sand washing machine with characteristics of sand recycling plant, making a compact multiple function sand washer.

Sand washer type: bucket type, single or double bucket

Screening sieve: PU screening sieve

Usage: It is widely used for the washing, screening, recycling and dewatering of fine sand above 0.16, especially recycling the 0.16-3mm river sand, lake sand, sea sand, construction sand, crushed sand.

Working principle

Washing: The bucket is driven by the motor through the reducer and rotates in circle.

There are many sand storage web grooves and bucket screen for sand storage and primary dewatering.

When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.

Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray.

The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.

Features

1 - Higher sand quality, lower moisture content.

2 - Recycled fine size 0.16-3mm sand, lower mud content.

3 - Compact structure and easy installation.

4 - High productivity and 95% of fine particles kn the material can be recycled.

5 - Solve cleaning problem of seclimentation tank and improve economic performance at the same time.
