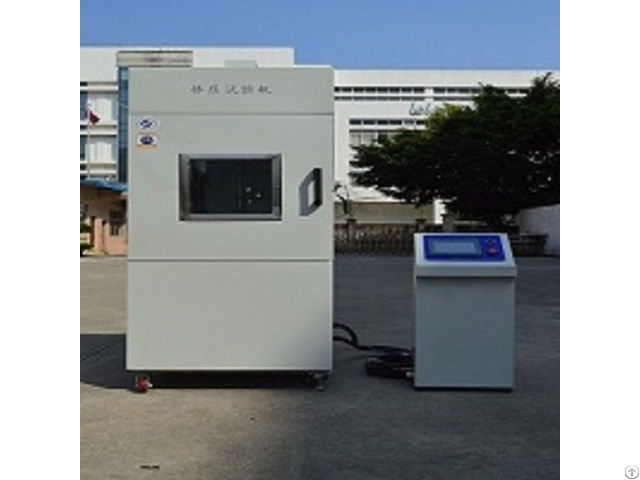

High Efficiently Battery Overcharging Explosion Proof Cabinet Chamber - China

Application Explosion-proof chamber is mainly used for charging and discharging of battery.

Put the battery in explosion-proof chamber and connect charge and discharge tester to protect the operator and equipment.

The body is made of steel material with strong texture and well explosion protection.

Features (High Efficiently Battery Overcharging Explosion-proof Cabinet chamber) a.

The chamber provides explosion and flame proof function for battery to do over charge and over discharge test.

b.

The tester is divided in three layer with three test chamber.

c.

Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.

Specification(High Efficiently Battery Overcharging Explosion-proof Cabinet chamber) Model LJ-505050 LJ-001-2 LJ-002(A, B) LJ-720L

Inner size(W*D*H)

mm 500*500*500 1000*500*500(2 layers) 500*500*500 400*400*500

External size(W*D*H)

mm 600*600*800 1200*600*600 Optional 1600*480*1800

Material External chamber: Cold-rolled steel spray treatment

internal chamber: SUS 303/304 stainless steel

Structure Single door Double open door 2 layers, 1 box/layer, total 2 separate boxes 4 layers, 2 boxes/layer, total 8 separate boxes

Observing window 200*200mm explosion-proof glass(The intensity is around 12MPa) Steel wire net Steel wire net

Accessories for door Reinforce hinge; explosion proof handle locks

Insulation Insulating rubber at the bottom of the test chamber

to prevent the external short circuit of the battery

Lighting The top of the box is equipped with a high luminance

energy saving lamp to illuminate the whole test space.

Optional no

Control panel Control the exhausting and lighting in the test chamber

Air vent There is an air vent on the side of chamber

Exhausting fan A strong Exhausting fan is installed behind the box, the smoke can be discharged out of the box during testing

Alarm Each box is equipped

with smoke rod and

temperature alarm.

Valve Pressure relief valve

Caster There are 4 casters at the bottom, it is convenient to move and fix.

Power supply AC 220V 50HZ 200W

Working environment Allowed working environment: 0 ~ 35ºC

Performance assurance environment: 5 ~ 28ºC

Fire extinguisher manual CO2 fire extinguisher

Customized service Welcome to Non-standard, Specail requirements, OEM/ODM orders.

Standards: GB/T31467.3-2015, GB/T31485.3-2015, B/T4857.5-92, IEC62133, UN38.3, ISO02448-1972E, QC/T743, QC/T744 Our Factory Short introduction about LIK factory:

We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment.

In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.

LIK main test equipments:

Environmental test chambers, temperature (humidity) chamber, Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber), ESS chamber, Walk in constant temperature and humidity test chamber, Vacuum oven, Drying Cabinet, electrodynamic vibration shaker, mechanical shock tester, environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equipment, Battery needling/nail punture/acupuncture test machine, etc.
