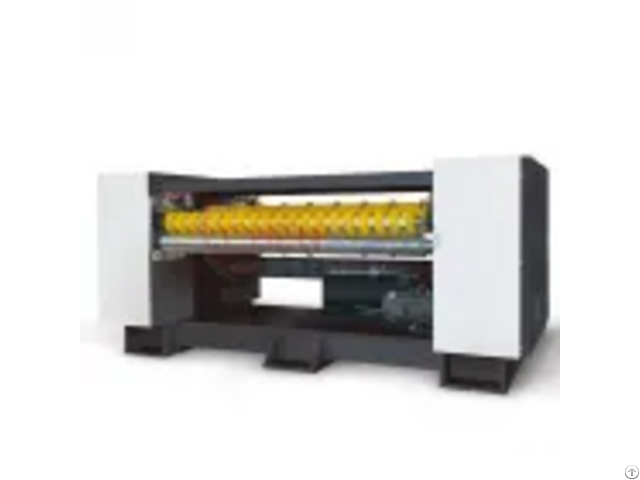

Helical NC Cut Off Machine

The Nc Cutter Machine is used to cut the paperboard / sheet.

Mostly match with corrugated cardboard production line.

Also have stand alone machine.

Regarding the online cut off machine, it has two types: Straight knife cut off and Helical knife cut off.

Straight knife cut off machine suitable to the lower speed production line while the helical knife cut off suitable to the high speed production line.

Both of them can make frequency inverter driving type and NC servo motor driving type.

Frequency inverter type is more economical and energy saving.

NC servo motor type has higher precision and speed.

Details:

Automatic Grade: Automatic

Certification: CE certification

After-sales Service Provided: Online installation guide

Application: Food, Beverage, Commodity, Medical, Machinery & Hardware, Apparel, Textiles

Advantages:

1 - The whole system adopts C.

E standard design and manufacture, and passes strict industrial grade computer test to ensure quality, life and stability.

2 - The system has automatic detection function to prevent the loss of equipment caused by abnormal use and negligence of operation.

3 - Computer can automatically adjust cutting acceleration according to cardboard specifications and production speed; Automatic tracking board running speed, keep synchronization.

4 - The computer can store up to 999 groups of orders and automatically complete them in order or according to priority conditions.

The screen displays various production information.

5 - System features super high speed, super precision, super stability.

Structure Features:

1 - The driving part adopts Danfoss/Emerson servo driver from Denmark and FEz permanent magnet servo motor from Italy, with high quality and fast response and accurate action.

2 - Brake energy consumption power recovery, storage and release design, save more than 30% energy consumption, effectively overcome the power instability in the factory.

3 - Special structure design: excellent strength of mechanical wall panel and base, with perspective Windows on both sides of the wall panel, easy observation and maintenance.

4 - Automatic machining center of spiral knife shaft processing, high precision, high speed cutting smooth operation.

Blade exchange structure is simple and convenient, more stable.

5 - Gear material is high quality alloy steel, tempered and carburized grinding process, hrC58-60 ° hardness.

6 - Lubrication system adopts automatic circulation lubrication of oil pump to ensure transmission accuracy.

Independent oil pump and filter are used together with two groups of copper pipes distributed in each gear position for oil supply, lubrication and cooling.

It is equipped with under-pressure protection, if there is no oil pressure, the relay moves and the cutter stops working, to avoid damage to the gear of crosscutting machine when there is no oil.
