Handheld Laser Welding - China

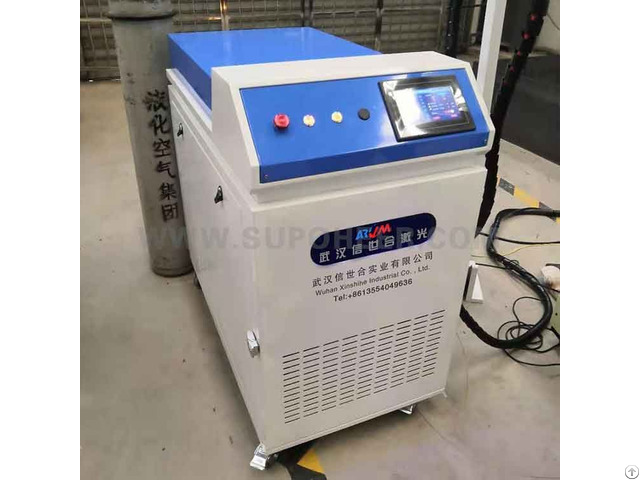

Handheld laser welding laser welding machine for sale handheld laser welding machine SUPOHEER Fiber laser welding machine is a kind of laser welding equipment that couples a high-energy laser beam into an optical fiber, collimates it into parallel light through a collimating lens, and then focuses on the workpiece to perform welding.

For parts that are difficult to be welded, the flexible transmission non-contact welding is implemented, which has greater flexibility.

Product Features

1 - Hand-held welding is easy to learn, easy to use, and does not require professional operators similar to arc welding.

2 - The operation mode of the hand-held welding gun can weld the workpiece at any angle.

Suitable for various complex welding, spot welding of various devices.

3 - The light source of the fiber continuous laser welding machine adopts a 1000W fiber continuous laser, and the laser life can reach 100, 000 hours.

4 - The laser welding machine is maintenance-free, stable, and low in cost;

5 - Laser welding has high energy density, small thermal deformation, narrow heat affected zone and large penetration depth;

6 - The welding seam is fine, the depth is large, and the precision is high.

The appearance of the welding seam is smooth, flat and beautiful, eliminating the need for subsequent polishing and other processes;

7 - It is also suitable for spot welding of various complex welding seams and various devices.

Performance parameters of fiber lasers Optical properties Test Conditions

Rated output power (W) 1000 /

Power adjustment range (%) 10-100 Working mode Continuous/modulation /

Polarization direction Random /

Wavelength (nm) 1080±5 Rated output power

Output power instability

±1 - 5% Rated output power; Continuous running time: more than 5hrs; working temperature: 25° C

Modulation frequency (Hz) 50 〜5k Rated output power

Indicating red light output power (mW) 0 - 5〜1 /

Fiber output head type QBH /

Beam quality (BPP, mm *mard) <1 - 3 Rated output power

Divergence angle (rad) W0 - 1 Rated output power

Fiber core diameter(μm) 50 /

Output fiber length (M) 20 Customizable

Electrical properties

Working voltage Three-phase five-wire system

AC340V-AV420V,

/

Maximum power consumption (W) 400 /

Control method RS-232/AD /

Other properties

Appearance size (W*H*D) 485x663x237 Weight (kg) <50 Working environment temperature range (°C) 10 〜40 /

Working environment humidity range (%) <70 /

Storage temperature (°C) _10 〜60 /

Cold start temperature (°C) 20 Cooling method (°C) Water cooling / As a professional industrial boiler and automated guided vehicle manufacturer.
