H6236 Double Head Cnc Lathe Machine - China

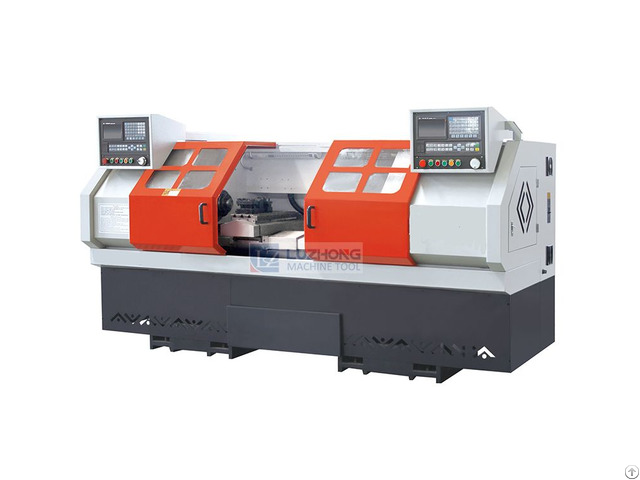

H6236 Double Head CNC Lathe Machine

Flat Bed CNC Lathe Machine

CNC Lathe Machine

CNC Lathe Features :

Two spindle

Taiwan higher accuracy linear guideways

Higher working efficiency

Automatic lubricating

Application :

The machine is two spindle CNC lathe machine with higher speed, higher precision and higher reliability .

The spindle is in unit structure, the motion given by the frequency motor will be transferred to the spindle through synchronous belt, thus we can get the highest speed .

The spring clamps are employed fir the clamping the workpiece, which makes the clamping became more convenient, the accuracy highly improved and the operating strength saved .

Spindle bearing is contacted by 5 angular, 3 of which are place in the front and 2 in the back .

It makes the higher speed and higher rigidity .

machine Tool adopts reverse loading slide saddle, linear guide rail, has the stronger rigidity, faster feeding speed, easier chip removing .

X and A axis screws are in the middle of the carriage, force well-distributed smooth in the movement, higher in speed .

Fully shield machine house does not leak oil and water, green and beautiful .

Product main technical specifications :

Specifications Units H6236X2

Max.

swing over bed mm 350

Max.

swing over cross slide mm 110

Max.

processing length mm Collet300/chuck200

X/Z axis travel mm 270/250

Spindle nose A2-5

Spindle bore mm 48

Bar capacity mm 38

Max.

spindle speed rpm 4000

Spindle motor KW 5.5

X/Z axis repeatability mm ±0.003

X/Z axis feed motor torque N.

m X: 6 Z: 6

X/Z axis rapid traverse m/min 15/15

Tool post type 4 gang type tool post

Cutting tool shape size mm 20X20

Guide form Linear guide rail

Total power capacity KVA 8.5

Machine dimension(LxWxH) mm 2900X1400X1650

Net weight kg 2600
