Gzd Zsw Series Vibrating Feeder - China

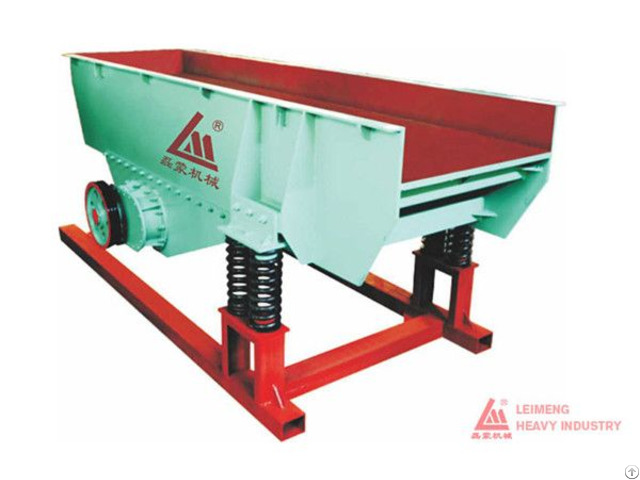

GZD ZSW Series Vibrating Feeder

Type: Vibrating feeder

Input size: 300-600mm

Processed Materials:

Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.

Applications:

Mining, metallurgy, construction, highway, railway, and water conservancy, etc.

Description

We have two type feeders, one is vibrating feeder, another is line feeder, Vibrating feeder with two motors, the user adjust the vibration frequency to control the feeding speed, keep the whole production line working smoothly.

Line feeder’s characteristics: smoothly, working reliable, long-life working etc.

Our feeders can feed continuity and evenly, rough sizing.

It is widely used in crushing&screening production line for mining, construction, silicate, chemical industry.

Vibrating feeders can feed continuity and evenly, rough sizing, it is widely used in crushing & screening production line for mining, construction, silicate, chemical industry.

Specifications

Model Manger size

(mm) Max.

feeding

(mm) Handle ability

(mm) Motor (kw) Weight (t) Size (mm)

GZD250 * 75 2500 * 750 300 50 - 80 1.5*2 1.5 2580 * 1430 * 600

GZD300 * 90 3000 * 900 450 80 - 100 3*2 3.5 3050 * 1580 * 750

GZD370 * 100 3700 * 1050 500 100 - 150 3.7*2 4.5 3980 * 1878 * 866

GZD490 * 110 4900 * 1100 580 120 - 280 5.5*2 5.8 5200 * 1900 * 950

GZD500 * 120 5000 * 1200 600 200 - 400 5.5*2 7 5450 * 2000 * 1000

ZSW380 * 96 3800 * 940 500 100 - 160 18.5 5 3800 * 1540 * 1660

ZSW190 * 110 4900 * 1100 580 120 - 280 22 6 4900 * 1700 * 1660

ZSW590 * 110 5900 * 1100 600 200 - 350 30 7.2 5900 * 1840 * 1900

ZSW600 * 130 6000 * 1300 600 400 - 560 37 9 5980 * 2050 * 1950

Advantages & Characteristics

Simple and reasonable structure

Easy maintenance

Continuous and uniform
