Gts Drum Trommel Screen - China

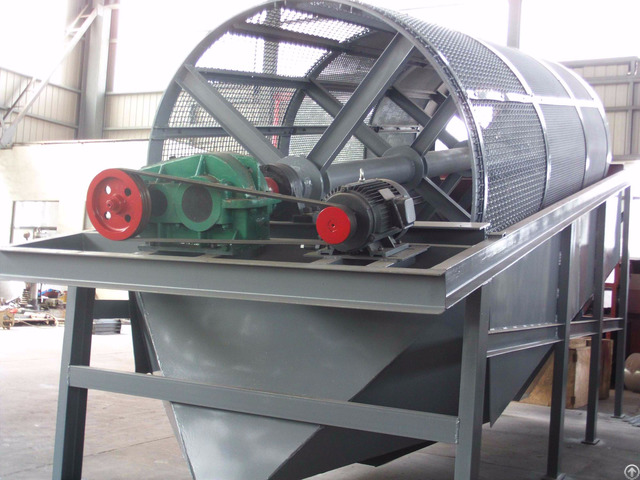

A cylindrical-shaped sifting machine mainly consists of drum, screen frame, hopper, reducer and motor.

Generally applied to evenly separate finished material products and for further sieving.

Classified into two types according to its cover (open type and closed type) and shaft (shaft type and shaft less type).

Both design and screen body materials can be customized to clients’ preferences.

Working Principle

Materials entering the drum screen move forward along with the rotation of drum.

Materials will be tossed and rolled along the screen where smaller size materials will sieve through while bigger size materials will roll through the end of the rotating screen.

The feed end of cylindrical drum is normally elevated at an angle.

Features and Advantages

 Simple and reasonable design with stable operation.

 Customizable enclosed screen box to prevent dust pollution.

 Suitable for various materials sifting including poor quality materials.

 Rolling movement of materials along screen mesh help to prevent blockage.

 Isolation of sealed dust cover helps to contain noise thus lower noise pollution.

 Cylindrical-shaped screen provides larger surface area which increase higher possibility of materials in contact with the screen mesh, therefore increases capacity and improves effectiveness of machine.

 Low consumption of energy.

 Durable therefore low maintenance cost.

 Inspection and maintenance of the machine is made easy and convenient through the design of its’ cover.

Applications

Applied in composting, chemical, coal, construction, gold mine, plastic, recycling, metallurgy, electric power and light industry, mineral-selecting, agriculture, etc.
