Grp Pipe Filament Winding Machine - China
price: 265710.00 Dollar US$

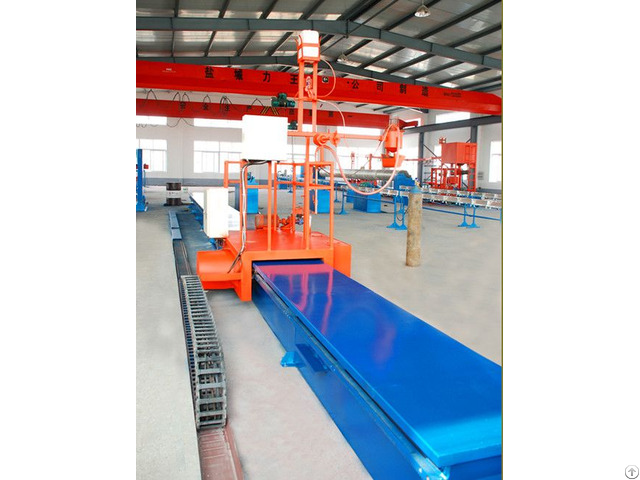

GRP Pipe Filament Winding Prodcution Line-Winding Machine
GRP Pipe Winding Machine Specifications:
General technical data:
Diameter range DN300mm-3000mm
Length of Product 12m
Winding Angle 45 - 90
Carriage stroke 13m
Control Manner Two axes motion and three spindles
Electrical power supply 380V, 3 phases 50-60 Hz
Raw materials:
Resin Polyester resin, or vinyl ester resin
with reinforcement yarn E-Glass or ECR Roving 1 - Liner making machine(13 Kw/set) (1set)
Consist of:
1) Headstock 1 set
2) Tailstock 1 set
3) Railway 1 set
4) Carriage 1 set
5) Four-wheel pneumatic roller 1 set
6) Mylar delivery rack 1 set
7) System of timing with frequency conversion 1 set
8) Electric control system 1 set
9) Resin feeding system 1 set
Company Contact:
- Posted By: Shenzhen Yi Yi Light Co., Ltd.
- Phone: 17665472335
- Address: Room 304, Fudong Business Building, Gongming Town, Guangming District, Shenzhen , guangdong , China
- Email:
Published date: November 25, 2019
- Business Description: Founded in 2009, YIYI Lighting is a LED Strip Light, LED Panel Light, LED Jewelry Spotlight, LED Cabinet Light, LED Ceiling Downlight, LED PAR Light comprehensive enterprise with integration of research, production and sales.
Regarding Quality as soul and Clients as Motivation, YIYI Lighting has devoted itself into building a high-tech enterprise with classic quality and service.
