Fzg Yzg Vacuum Dryer - China

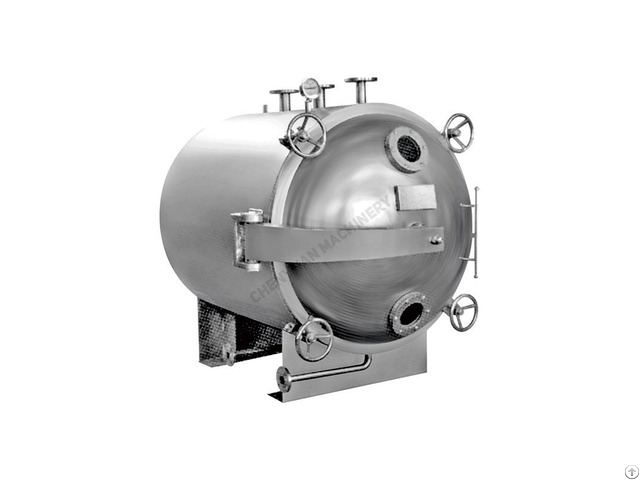

YZG Vacuum Dryer is suitable for low temperature drying of heat sensitive materials that are easy to decompose, agglomerate and deteriorate at high temperatures.

It is widely used in such industries as medicine, chemical industry, food, electronics, etc.

Vacuum drying means to heat the materials to be dried under vacuum conditions.

If a vacuum pump is used for air evacuation and humidity removal, the drying speed will be increased.

Note: If a condenser is adopted, the solvent in the materials can be recovered through the condenser.

It the SK series water loop vacuum pump is adopted, there is no need to use the condenser, so that energy is saved.

Technical Parameter

Model YZG-600 YZG-800 YZG-1000 YZG-1400 FZG-10 FZG-15 FZG-20

Dimensions inside the drying oven(mm) Φ600*976 φ800*1247 φ1000*1527 Φ1400*2054 1500*1060*1220 1500*1400*1220 1500*1800*1220

Dimensions outside the drying oven(mm) 1135*810*1020 1700*1045*1335 1693*1190*1500 2380*1675*1920 1924*1720*1513 1924*2060*1513 1924*2500*1513

Drying frame layer quantity 4 4 6 8 5 8 12

Distance between layers(mm) 81 82 102 102 122 122 122

Drying disc size(mm) 310×600×45 520×410×45 520×410×45 460×640×45 460×640×45 460×640×45 460×640×45

Drying disc quantity 4 8 12 32 20 32 48

Working pressure in the drying frame pipe ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784

Drying frame working temperature 35～150 35～150 35～150 35～150 35～150 35～150 35～150

Vacuum degree under idle load in the oven -0.1 -0.1 -0.1 -0.1 -0.1 -0.1 -0.1
