Full Enclosed Impurity Eliminating Insulating Oil Purifier Plant with Frequency Converter Application

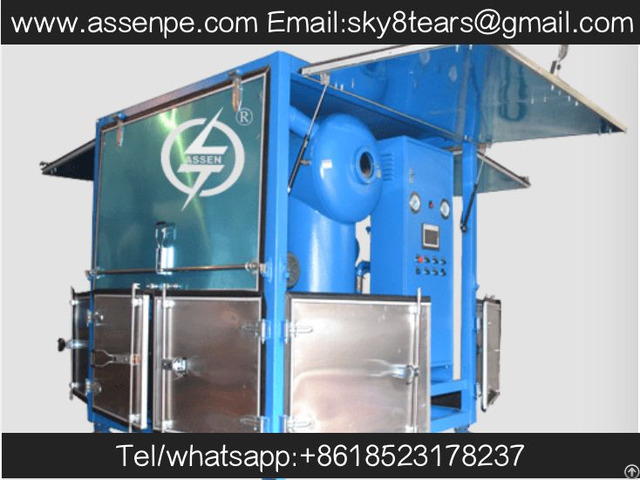

Full Enclosed Impurity Eliminating Insulating Oil Purifier Plant with Frequency Converter

process serves to improve the properties of insulating oil.

It eliminates the moisture, traces of water, dissolved gases, and particulate matter from the insulating oil effectively and rapidly.

In addition, it adopts a frequency converter, which can adjust the flow rate as your needs.

The bottom line of this purification process is to enhance the performance level of transformers, circuit breakers, mutual inductors, cables, and capacitors.

All these equipment and machinery use an insulating system.

FEATURES:

1 - Unique and highly efficient dewatering and degassing device, it adopted a large area three-dimensional flash evaporation and mature film evaporation technology to rapidly remove the free and dissolved water and gases from used and waste insulating oils.

2 - Precise filtration system, high quality filter element, multi-stage filtration system levels, can effectively remove the mechanical impurities from the insulating oils, the final accuracy can be 1 um.

3 - Electrical heating system is the optimized pipeline design to ensure uniform heating and stable oil temperature.

4 - Automatic constant temperature control device, automatic liquid level control device, automatic defoaming device, automatic pressure protection device and excellent configuration can ensure the equipments in high performance.

5 - Work online and the indicators display running.

6 - Unattended operation with low working noise and longtime free maintenance.

7 - A complete machine safety interlock protection system, discharge oil system, vacuum system and the heating system interlock, to avoid the adverse effects of misuse.

Optional Models for your needs

1 - Optional P.L.C.

intelligent panel control, touch screen operation and dynamic display according to user needs.

2 - Optional Online PPM Meter, Optional flow meter with accumulator function.

3 - Optional external port design for transformer vacuum pumping

4 - The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type.

5 - Optional three stage high vacuum system for higher vacuum degree work.

Technical Data of Full Enclosed Impurity Eliminating Insulating Oil Purifier Plant with Frequency Converter

Parameters Unit ZYD-200

Flow rate L/min 200

Working vacuum Pa 50 ～ 80

Working Pressure MPa ≤0.5

Ultimate vacuum Pa ≤3

Temperature Range ℃ 20 ～ 80

Power Three Phase 50HZ380V(as per the customer's requirements)

Working Noise dB(A) ≤75

Heating Power kW 180

Total Power kW 196

Inlet/Outlet mm φ50

Weight kg 1200

Overall Length mm 2300 Width mm 1700 Height mm 2550

After Filtration Water Content PPM 2
