Full Automatic Flexo Folder Gluer Machine Trimming Corner Cutting Counting Ejecting - China

PRODUCT DESCRIPTION

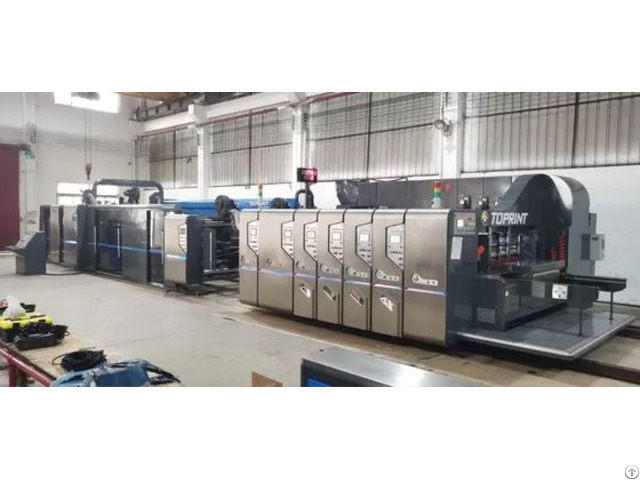

Full Automatic Flexo Folder Gluer Machine For Corrugated Carton Box Making 900x2000mm Model Full Automatic Flexo Folder Gluer Machine, Flexo Folder Gluer, Carton Box Making Machine, For Corrugated Carton Box Making 900x2000mm Model GENERAL SPECIFICATION TP-CR Series open & close type flexo folder gluer can finish multi processes in one pass, such as feeding, printing, creasing, slotting, trimming, corner cutting, punching, die-cutting, folding, gluing, counting and ejecting.

The machine is designed according to high request and reliable function, humanization operation, it can set, change and memory orders in short time, with touch screen display.

All of drive rollers are made of super quality steel, hard chrome plated, with surface two times grinding, and make balance adjustment.

Transmission gears, planetary gear, registering gear, Axle sleeve gear are made from 20GrMnTi.

Teeth carburized and quenched; the hardness is HRC58-62 - Precisely ground and more stable running.

(Ground by Germany High-Precise gear grinding machine.

The precision grade up to 6.5

The machine with automatic lubrication and oil recycle system.

PARAMETERS OF MACHINE Full Automatic Flexo Folder Gluer Machine Trimming Corner Cutting Counting Ejecting 0 Model Parameters (MM) 0920 1224

Max.

Sheet Size (FxA) 890x2000 1190x2400

Skip Feed Size (FxA) 1200x2000 1400x2400

Min.

Sheet Size (FxA) 280x780 380x780

Max.

Printing Area (FxA) 890x2360 1190x2360

Top Speed (Sheet/min) 300 250

Economic Speed (sheet/min) 120-250 120-200

Max.

Slot Depth Size 300 300

Min.

Box Height Size (E) 110 110

Max.

Die-Cutting Area (FxA) 850x2350 1150x2350

(Max.

size) (B+C) ≤980 mm ≤1180 mm

(Min.

size) (B+C) ≥370mm ≥380mm

(Max.

size) (B) 880mm 1030mm

(Min.

size) (B) 270mm 280mm

(Max.

size) (C) 710mm 900mm

(Min.

size) (C) 100mm 100mm

(Glue Flap Width) (D) ≤40mm ≤40mm

Sheet Thickness 1.5-11 1.5-11

Printing Plate Thickness (Sponge + Film + Plate) 7.2 7.2

Main Working Power (KW) Flexo Printer + Inline 70+40 70+40

Total Power(KW) Flexo Printer + Inline 100+51 100+51

Dimension (mm) 4 Colors Slotter Die-cutter 10500x5000x2530 10500x5200x2630

Inline Folder Gluer 14300x2500x2650 14300x2600x2650

Frame Thickness Flexo Printer 60mm 60mm

Folder Gluer 40mm 40mm FEEDING SECTION Full Automatic Flexo Folder Gluer Machine Trimming Corner Cutting Counting Ejecting 1 Pressure Lead Edge feeder with vacuum transfer, suction volume is adjustable depends on the sheet size to make sure smooth feeding.

Main motor with start protection device, machine can’t run when units are not closed.

Continuous or Skip feeding is available.

Double feeding rollers, the upper rollers are covered with two layers of rubber.

Motorized adjusted of gaps or by order management.

Non-crush Feeding System is Optional
