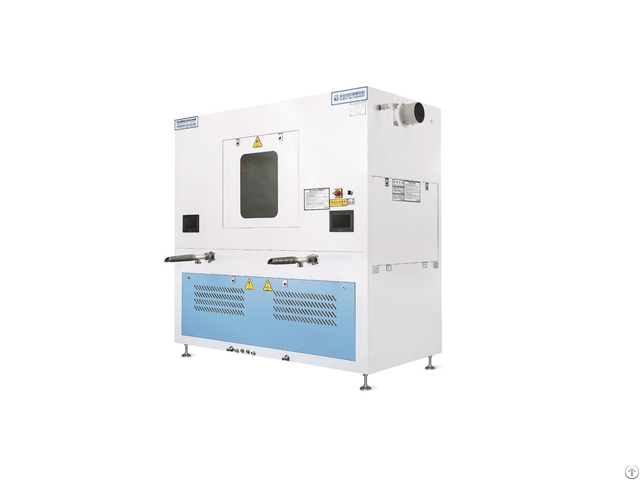

Four Nozzles Fiber Stuffing Machine - China

Applied for large pieces filling, we develop automatic fiber filling machine.

Max weight updated to 150g.

Four nozzles allow four operators working at the same time, single scale support each filling port of ball fiber filling machine.

Highest precision of polyester fiber filling machine reach to 0.1g.

Storage unit and weighing unit of fiber stuffing machine are combined together to reduce covering space.

Details:

Brand: Bealead Model: 402D Composed by: 1 feeding unit and 2 weighing units / filling station Filling Pipes: 4 Scales by filling pipe: 1 Fillings by hour: 1000 lattices Application: Apparel, Commodity, Textiles Material Application: 50%- 90% down Weight: 700kg Filling Storage: 10kg Weighing Range: 10g- 150g Accuracy: 0.1g Feeding Unit Size: 2.07* 1* 2.01m Overall Size: 2.07* 2.4* 2.01m Min.

Site Area: 4m* 6m Main Specification

Voltage

380V

Air Tank ≥1m³

Air Pressure 0.6- 0.8MPa

Air Compressor Power 11KW

Min.

Air Pressure 0.5MPa

Air Compressor Exhaust

≥1.6m³/min

Max.

Power 3.5KW

Air Monitoring System -

PPR Pipe 1.5 inch

Down Returning System -

Pipe Distance ≤20m

Humidity Control System √

Accessories

parts of down filling machine Company Information

ChangShu Bealead Automatic Machine Co., LTD, located in changshu, jiangsu, china.

Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production.

We are in leading position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
