Fod Sweeper - China

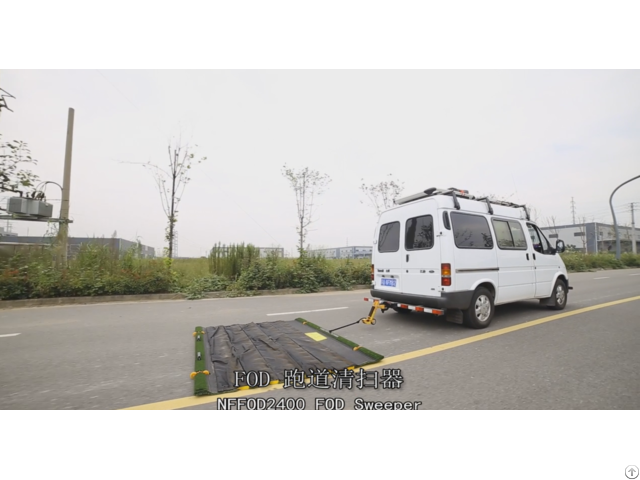

Quick clean blanket for junk of airport and road This product is specially designed for cleaning the road and various airports.

Airport road junk such as nuts, bolts, sand and small stones will be quickly and thoroughly cleaned.

FOD (foreign object damage) clean blanket standard sweeping width is 2.4 meters, the maximum speed is up to 40 km/hour, the maximum cleaning area is 100 thousands square meters/hour.

If the expansion program is adopted, the sweeping width can be up to 7.2 meters, so the cleaning job can be finished in the shortest time.

Product features

*Environmental protection

No chemical cleaning agent, no engine, no noise, little impact on road surface.

*Economical efficiency

The costs of total purchase and operation and maintenance are low.

It is only 1/2 cost of the similar other products.

Not only routine maintenance is needless, but also the moving parts are free from replacing regularly.

The comprehensive operation cost is far lower than that of traditional cleaning vehicles.

If it is used in conjunction with other airport supporting equipment, the effect is better.

*Convenient operation

The clean blanket installation can be finished within five minutes by one person without special training.

It can be dragged in the rear of the car.

No additional maintenance fees are needed.

It can be used all year round.

*Ingenious and durable cleaning structure

A tough and wearable brush is installed on the FOD clean blanket to sweep up junk, and then rows of special designed rubber shovels collect junks into the storage net bag.

Without magnetic force, the magic clean blanket can work for ferrous and non ferrous metals.

*Good applicability

Any area within the airport can be cleaned, including runway, apron, repair area, garage, etc.

And it suits a variety of pavements, including concrete, asphalt, stone and groove roads.

*Main parameters of FOD clean blanket

Equipment specifications: length 2450mm, width 1900mm and height 90mm

Drawbar: weight 0.5kg, quantity 1 piece

Brace wheel: weight 0.2kg, quantity 6 pieces

Blanket frame: weight 0.4kg/slice, quantity 40 slices

Net cover: weight 5kg, quantity 1 sheet

Total weight: 31kg

Maximum operating life: ≥10000 km

Drive form: traction equipment hitching and towing Maximum working width: 2450mm

Maximum load: 50kg

Maximum allowed wind speed when travelling: 10m/s

Maximum operating speed: 40km/h

One slice configuration 60, 000 ㎡/hour 2.45m

Two slices configuration 120, 000 ㎡/hour 4.9m

Three slices configuration 175, 000 ㎡/hour 7.2m

Company Contact:

• Posted By: Beijing Season Free Machinery Equipment Co.,Ltd

• Phone: +861065422606

• Address: No.2118,Ping Fang Cun,Ping Fang Xiang,Chao Yang District ,Beijing,100123,China., Beijing , Beijing , China

• Email:

• Website: http://www.seasonfree.net

• Business Description: We are specializing at producing airport ground support equipment(GSE), such as deicing vehicles, snow sweeper, FOD Sweeper, deicing fluid vehicles, electricity baggage conveyor vehicles.
