Fine Wire Drawing Machine With Annealing - China

PRODUCT OVERVIEW:

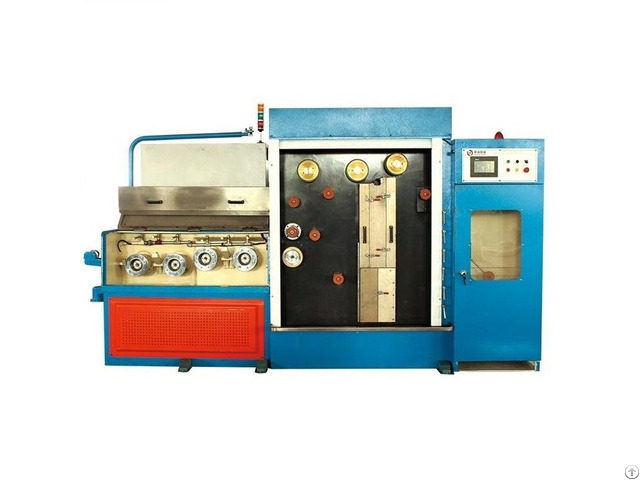

Fine wire drawing machine with annealing is special for drawing and annealing copper wires .

Finished wire is wound by 300 steel bobbin.

MAIN SPECIFICATION:

1 - Machine type: SY-DT24

2 - Inverter control: Dual inverter control

3 - Drawing dies No.

/max: 24

4 - Inlet diameter: 0.5- 1.2 mm

5 - Out diameter: 0.15- 0.35 mm

6 - Max.

Drawing line speed: 1800 m/min

7 - Slip ratio of m/c: 13%

8 - Fix speed capstan slip ratio: 8%

9 - Frame: Welded by steel plate ADVANTAGES:

(1).

Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.

(2).

Third-section-annealing system, outside electrically neutral (no current flow to other unit)

(3).

Machine’s body and other key components and parts are produced by our own factory, quality is reliable.

FAQ:

Q1: What’s the payment terms?

A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.

Q2: How about the after-sell service? A2: Engineer will be dispatched at needed.

Q3: How much need pay for after-sell service? A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.

Q4: Can you support complete project instead of single machine?

A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts, worker training etc can be offered.

Q5: What kind of Guarantee you can offer?

A5: 12 months since shipping date and charge for repair the whole life.
