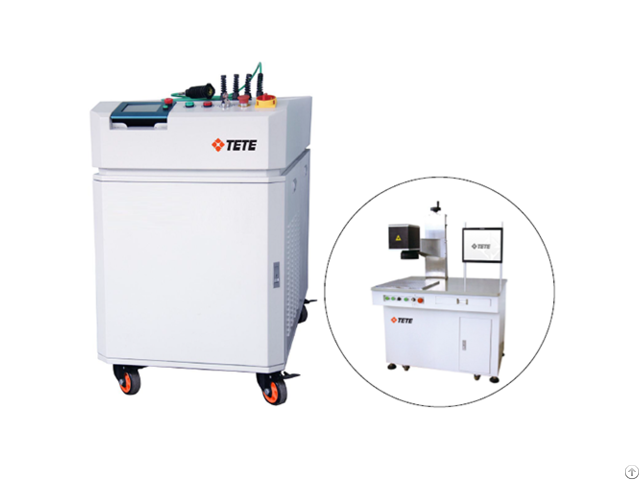

Fiber Laser Welding Machine Welder System For Stainless Steel Aluminum Cooper Titanium Lpy W300e - China

Features 1 - Widely applicable, extensively applied in precise welding of various metals and non-metals

2 - High flexibility, deployed with a manipulator, it can realize precise welding in different angles

3 - High stability, adopting energy negative feedback technology to ensure laser power output is stable.

4 - Laser power output is verified and maintained to ensure high welding repeatability and quality.

The output power is shifted within ±2%.

5 - During processing, the waveform can be adjusted according to the shape and material of the workpiece to improve welding quality greatly.

6 - Energy and timeshare options enhance processing flexibility.

Maximum 4 beam delivery optical fibers can be equipped.

It can support more than one workstation or multiple welding heads to improve production efficiency.

7 - It can communicate with other systems through I/O connectors.

Imported major components with high quality ensure system reliability.

8 - Welding parameter can be saved in Chinese and English name.

Storage capacity can be extended.

User-friendly interface.

Specification Model LPY-W75E LPY-W150E LPY-W300E

Wavelength 1064nm

Power 75W 150W 300W

Max.

Energy 50J 70J 100J

Measuring and Monitoring Real-time power negative feedback

Flexible worktable X-Y stage

Pulse Frequency 0.2~50ms

Pulse Frequency 0.5ms-20ms

Continuous pulse width 100ms/s

Cooling Mode water cooled Ambient Environment Temperature: 13ºC~35ºC

Humidity: 5%~75%

Power Consumption 4KW 6KW 12KW

Electrical Connection Three-phase 380V/500Hz, 15A-50A

Dimensions (L×W×H) 1100mm×850mm×1600mm

Weight 250kg Note: In the interest of technical progress, we reserve the right to make technical changes without notice.

FAQ 1 - Q: Where is TETE Laser Technology Co., Ltd located?

A: Shenzhen TETE Laser Technology Co., Ltd headquartered in Shenzhen, China.

Our manufacture base covered 200, 000 sq.

m2 in Pingshan, Shenzhen.

We support dealers and agents overseas for global market.

2 - Q: Are you trading company or manufacturer? A: We a laser machinery manufacturer dedicated to professional industry laser solutions and concentrates innovation and R&D in laser machines products.

3 - Q: There are so many machine types, which one should I choose?

A: We provides machine parameters in each product demo page, please kindly check technical data column.

It is important to compare all data before choose the best prototype.

Also, our sales team provides online services to resolve your confusion, feel free to contact us.

4 - Q: This is my first time buying your machine; I have no ideas about is your machines quality?

A: Each machine is strictly produced based on the standard of ISO9001 and CE certifications.

Our products have CE certifications verified by authorized agency.
