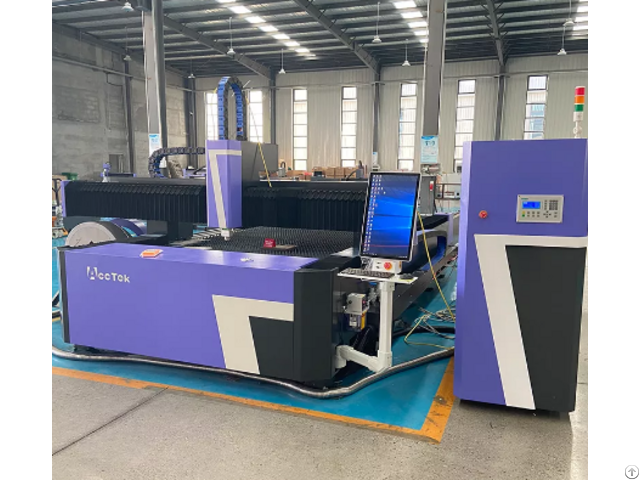

Fiber Laser Cutting Machine Raycus Jpt Power High Efficient - China
price: 23800.00 Dollar US$
Fiber laser cutting machine parameter 1-Configurations & technical parameter of steel sheet cutting machine Working area 1500*3000mm Control System Cypcut Laser head Raytools Rotary axis Option Auto exchanged table Option Fiber generator brand JPT/Raycus/IPG Guide rail Taiwan HIWIN linear guide rail 30mm Transmission Taiwan YYC/APEX gear rack Electronic Components French Schneider Motor Japanese YASKAWA servo motor(X axis 850w Y axis 1800w) Reducer MOTOreducer Max Cutting Speed 50m/min X axis max speed 80m/min Y axis max speed 100m/min Z axis max speed 30m/min X axis max acceleration 1G Y axis max acceleration 1G Cooling Way Water Cooling Min line width 0.1mm Power Requirements 380V, 50/60Hz, Continuous Working Time 24Hours Optional USA Nlight/WSX cutting head/Auto exchanged working table/2000*4000mm/6000mm working size/full enclosed structure 2- Standard parts of steel sheet cutting machine Name Specification Quantity Machine body 1500*3000mm working area 1 set Laser generator Standard 1 set Water chiller cooling laser head and generator 1 set Control box Cypcut control system 1 set Laser cutting head Auto following function 1 set Protective lens standard 1 set Focus lens standard 1 set Fiber laser metal cutting machine application
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street,Jinan City, jinan , ShanDong , China
- Email:
- Website: https://www.acctekgroup.com
Published date: October 11, 2022
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
