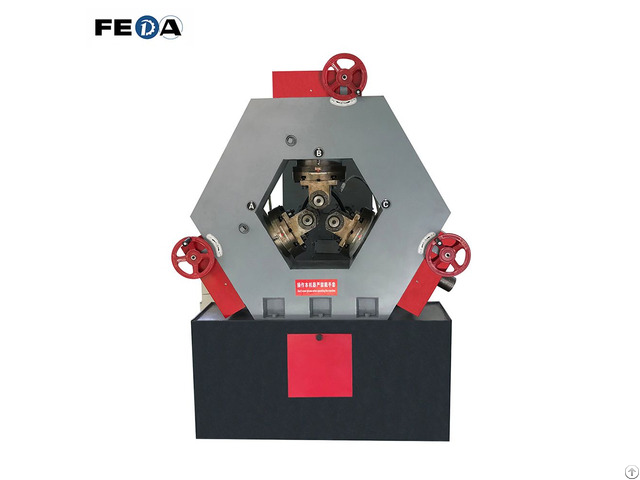

Fd-60f Electric Threading Hair Removal Machine - China
price: 11950.00 Dollar US$
1 - Three rollers to keep inside diameter same as that before rolling
2 - Usually used for making thread, knurling on pipe, tube parts
3 - High precision, stability and high durability
4 - Automatic feeding device(Vibration bowl) can be designed
5 - CE, ISO9001-2008
Specification
Working diameter 20-60mm Range of pitch 1.0-4.0P Thread length In feed or Thru feed Spindle speed 90/120rpm (variable speed) Outside diameter of rolling die φ100mm- 150mm Inside diameter of rolling die φ40mm Length of rolling dies 100mm Max.
distance between the roller shafts 100mm Output(pcs/min) 10-35(pcs/min) Swiveling Angle(degree) ±3° Main power motor 5.5 KW Hydraulic motor 2.2 KW Max rolling pressure 15T Supply voltage 380V 3P 50Hz Weight(reference) 2250KG Dimension(L*W*H) 1650*1670*1850 mm Package(L*W*H) 1600*1620*1800 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: +8613392185053
- Address: No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , GuangDong , China
- Email:
- Website: https://szfeda.en.alibaba.com
Published date: February 22, 2025 - Modified date: February 25, 2025
- Business Description: We can provide thread rolling machine and dies for making thread on bolts, thread rods, fasteners, etc.
Can provide related automatic feeder, to save time and cost.
