Fd 30a Auto Part Thread Rolling Machine - China

price: 7650.00 Dollar US$

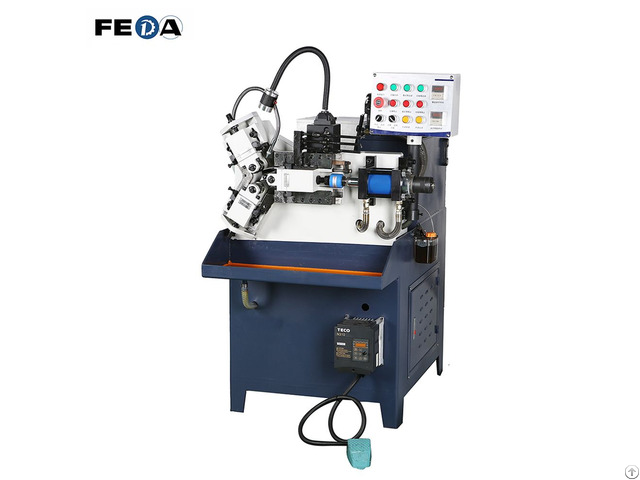

Fd 30a Auto Part Thread Rolling Machine

Products Photos Catalog 30a Auto Thread Photos Catalog

1 - Three rollers to keep inside diameter same as that before rolling

2 - Usually used for making thread, knurling on pipe, tube parts

3 - High precision, stability and high durability

4 - Automatic feeding device(Vibration bowl) can be designed

5 - CE, ISO9001-2008 Specification Working diameter 8-35mm Thread pitch 0.5-2.5mm Thread length In feed or Thru feed Spindle speed 350-600rpm (variable speed) Outside diameter of rolling die φ78mm- 90mm Inside diameter of rolling die(keyway) φ25.4mm&φ35mm Thickness of rolling die 40mm Center distance between die spindles 55-90mm Output(pcs/min) 5-30(pcs/min) Swiveling Angle(degree) ±3° Main power motor 2.2 KW Hydraulic motor 1.5 KW Max rolling pressure 6T Supply voltage 380V 3P 50Hz Weight(reference) 650KG Package Dimension(L*W*H) 1280*1100*1600 mm Dimension(L*W*H) 1180*1000*1500 mm


Company Contact:


  • Phone: 13312913043

  • Address: Songgang Street, Shenzhen , China , China

  • Email: Email


Published date: February 27, 2025

  • Business Description: Thread rolling machine, thread rolling dies, screw making machine, flat die thread rolling machine, thread rollers, thread rolling machinery, auto lathe machine, tapping machine, heading machine, bolt and nuts, thread rods
