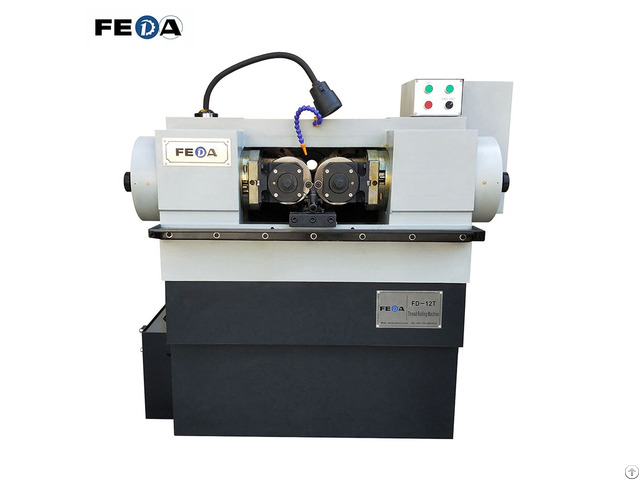

Fd-12t Automatic Thread Rolling Machine - China
price: 7650.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 54mm hole diameter for SKD11/DC53 thread rolling dies
4 - Max.
Rolling pressure is about 120KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008 Specification Working diameter 2-20/mm Thread pitch 0.4-2.5P Thread length In feed & Thru feed Spindle speed 42/53/68/87rpm Outside diameter of rolling die 120mm-175mm Inside diameter of rolling die(keyway) 54mm Thickness of rolling die 80mm Min.
center distance between die spindles 120mm Max.
center distance between die spindles 196mm Machine motor / Hydraulic motor 4.2KW Max.
rolling pressure 12T Supply voltage 380V 3P 50Hz Weight(reference) 1500(KG) Package Dimension(L*W*H) 1325*1300*1400 mm Dimension(L*W*H) 1176*1160*1200 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: 13312913043
- Address: Songgang Street, Shenzhen , China , China
- Email:
- Website: https://www.szfeda.com/
Published date: February 20, 2025 - Modified date: February 25, 2025
- Business Description: Thread rolling machine, thread rolling dies, screw making machine, flat die thread rolling machine, thread rollers, thread rolling machinery, auto lathe machine, tapping machine, heading machine, bolt and nuts, thread rods
