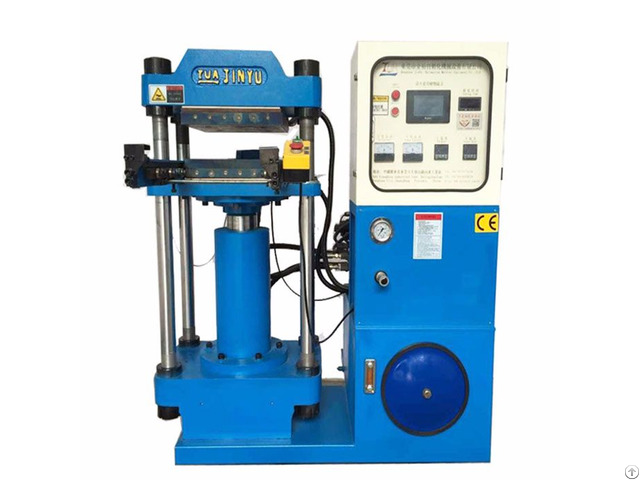

Factory Sell Automatic Silicon Rubber Mobile Phone Case Making Machine - China

1, working table: used deep hold processing, HRC50-55 harness, long time wear-resisting durable and hot easy to be out of shape and high plane precision.

2, Pillar: used with chromium, it’s very durable without distortion.

3, Push button: can choose to automatically or manually to complete the task.

4, Solenoid valve: control the circuit and ensure the machine can work normally.

mobile phone case making machine is a device through a dedicated hydraulic oil as the working medium, the hydraulic oil in the tank to complete a certain mechanical action as the productivity of a mechanical cycle cylinder / piston cycle acting through the one-way valve.

Features of mobile phone case making machine:

1 - Adopt the world advanced SOLIDEWORK3Dsoftware and finite element analysis of mechanical design, the optimum design is integrally molded high rigidity, precise structure, long service life.

2 - Heating plate adopt deep hole processing, and after carburizing, after grinding nitriding, using the principle of heat, get

the high precision, and the optimal design with average temperature, HRC50-55 hardness, long time wear-resisting, Not easy to be out of shape and it has high plane precision.

3 - Using the technology of planar pressure correction, the maximum pressure(200KG) nut leveling device, the highest plane precision can reach 0.05 MM.

4 - Unique oil circuit design, the oil circuit non impact and low noise in operation, increase the effectiveness, reduce the energy consumption.

5 - Using circulation radiation cooling device, to ensure good heat exchange, low oil temperature, long life hydraulic parts, stability forming.

6 - Intelligent PID control output, the difference of set temperature and actual temperature controlled in+-1 degree.

It is economic and energy-saving.

7 - Importing the latest digital prototype testing technology, higher thermal performance, better stability than the traditional design.

8 - Adopt imported famous brand digital temperature control, the precision of temperature controlled in +-2 degrees the program has a week preheating function.
