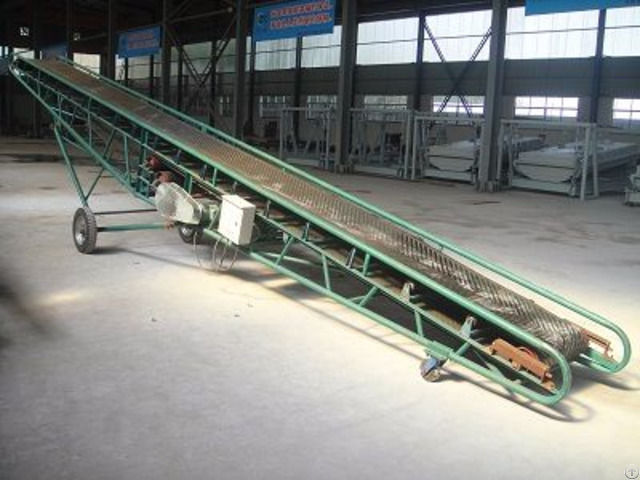

Dy Portable Belt Conveyor - China

Lightweight mobile machine which continuously convey materials in any production line.

Installed with reducer motor to drive the head pulley which rotates the conveyor belt.

Four wheels is attached to help move the machine around.

Can be assembled individually, multi-conveyors, or combined with other types of conveying machine.

Belt width up to 1000 mm.

Conveying distance can be customized up to 20 m.

Working Principle

Works very much alike to that of fixed belt conveyor where the machine is driven by two endpoint pulleys named drive pulley and bend pulley.

The rubber belt is conveyed by the conveyer rollers through the driving of reducer motor.

Conveyor belt movement relies on the friction force between the drive pulley and conveyor belt.

However, portable belt conveyor is installed with four wheels with a pair of them is the universal wheels to control the manoeuvring of the machine.

The lifting device helps to set the lifting height by adjusting the slope angle which is usually ranges from 10° to 35°.

Features and Advantages

 Simple and reasonable design with stable operation.

 Compact construction and small floor space.

 High precision and high loading capacity.

 Durable and reliable.

 Adjustable lifting height and slope angle.

 Customizable conveying distance.

 Work well with materials of temperature ranging from -10°C to 40°C (should not exceed 60°C).

 Easily movable machine.

Applications

Widely used in port, jetty, mining industry, warehouse, metallurgical, coal industry, and construction site to convey materials such as grain, bulk materials, packaging etc.
