Double Twist Bunching Machine - China

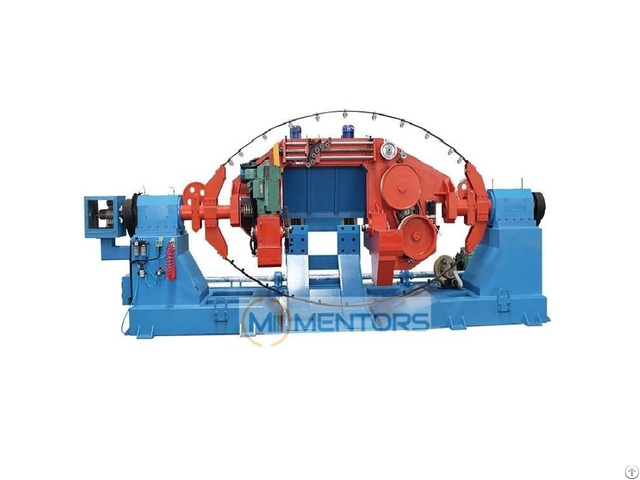

PRODUCT OVERVIEW: 1250 Double Twist Bunching Machine is used for twisting copper wires more than 7 wires.

FEATURE:

(1) Max.

Finished Twisting Section Area: 50mm2 (2) Max speed: 800 r/min (3) Raw material: copper wire, aluminium wire, pvc wire (4) Twisting type: double twist PRODUCT SPECIFICATIONS:

1: Machine type: BRN-1250

2: Wire product of stand: Twisting 7 copper wires or aluminum wire

3: Cooper wire individual: 1.0-3.0 MM

4: Finish stranded wire/max: 10 mm

5: Finish stranded wire/Max: 15mm φ/max

6: Section of strand-twisting

(Flexible strand): 3.5÷70mm2 (6AWG÷450MCM)

7: Section of strand-twisting

(Semi frametwisting1+6): 3.5÷50 mm2 (6÷1/0AWG)

8: Section of compaction Cu: 3.5÷50mm2(6AWG÷300MC M)

9: Section of compaction Al: 3.5÷70mm2(6AWG÷301MC M)

10: Line speed/Max: 150mpm/max

11: Stand pitch(mm): 40-350mm ADVANTAGES:

(1) More stability, high production efficiency, low noise and easy to operation.

(2) Production capacity is 3~4.5 times more than tube type and frame type twisting machine.

(3) Pitch can be changed by Electronic, save time and more easily.
