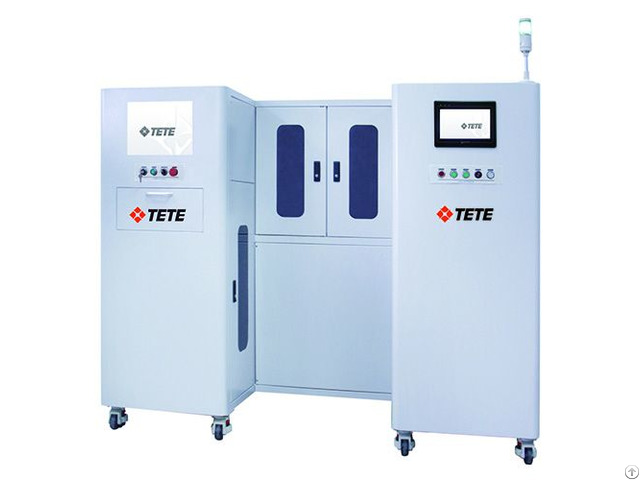

Double Track Automatic Laser Marking Machine Design For Ic Chip Dip Sop Ssop Qfm Bga Tete Dpf Ml30 - China

Features 1 - Automation, it adopts manual load and auto unload which improve its production efficiency.

2 - High Accuracy, CCD visual system can be calibrated automatically.

3 - User-Friendly interface on-line troubleshooting Adopting most advanced communication protocol which has internet function.

4 - High Stability, optimized design of control system ensures stable processing and yield rate.

5 - High Reliability, rapid cache transmission control, choice optical and electronic elements to ensure continuous work in long time and capacity.

6 - Long Life Time, high-quality fiber laser module ensure long lifetime to the system.

7 - Safety, fully enclosed design which highly enhances safety during processing.

8 - High efficiency, reduces processing time by equipping an automatic door in a protective cover.

Specification

Model DPF-Ml20 DPF-Ml30 DPF-MlH20 DPF-MlH30

Power 20W 30W 20W 30W

Wavelength 1064nm

Repeat Frequency 20KHz~200KHz

Load and unload Mode Autoload and unload

IC Packing Type DIP, SOP, SSOP, QFM, BGA etc

Laser Head Single or Dual Head

Marking Area Single head: 240mm×240mm

Dual head: 150mm×300mm

Marking Mode Stationary marking Beam Diameter 0.03mm

Cooling Mode Air cooled Ambient Environment Temperature: 13ºC~43ºC

Humidity: 5%~75%

Good ventilation and dust free

Power Consumption 2.5KW 1.2KW

Electrical Connection Single-phase 220V/50~60Hz, 10A

Dimensions ( L x W x H ) 2011mmx1230mmx1730mm 1500mmx900mmx1560mm

Weight 960kg 300kg Note: In the interest of technical progress, we reserve the right to make technical changes without notice.

FAQ 1 - Q: Where is TETE Laser Technology Co., Ltd located?

A: Shenzhen TETE Laser Technology Co., Ltd headquartered in Shenzhen, China.

Our manufacture base covered 200, 000 sq.

m2 in Pingshan, Shenzhen.

We support dealers and agents overseas for global market.

2 - Q: Are you trading company or manufacturer? A: We a laser machinery manufacturer dedicated to professional industry laser solutions and concentrates innovation and R&D in laser machines products.

3 - Q: There are so many machine types, which one should I choose?

A: We provides machine parameters in each product demo page, please kindly check technical data column.

It is important to compare all data before choose the best prototype.

Also, our sales team provides online services to resolve your confusion, feel free to contact us.

4 - Q: This is my first time buying your machine; I have no ideas about is your machines quality?

A: Each machine is strictly produced based on the standard of ISO9001 and CE certifications.

Our products have CE certifications verified by authorized agency.

5 - Q: Do you provide samples? Is it free or extra?

A: Yes, we are offering samples in free charge but not delivery fees, please contact us for more information.
