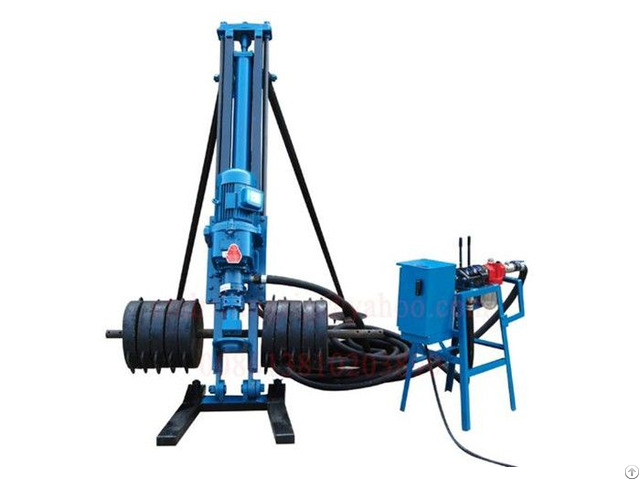

DM100A Pneumatic Powered Rock Drilling Rig

The rock blasting drilling rig DM100A/B is high powered with easy operation system.

The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project.

Within rock hardness range f=8-16, the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes.

The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.

MODEL DM100A DM100B

Air pressure(Mpa) 0.5-0.7 0.5-0.7

Hole diameter(mm) 75-130 75-130

Air consumption(m3/min) 9-17 6-12

Hole depth(m) 20 20

Feed Stroke(m) 1 1

Lifting power(N) 600 600

Rotation Speed(r/min) 0-80 110

Rock hardness f=8-16 f=8-16

Drive mode Wind motor Motor(Electricity)

Rated power(kw) 4 4

Drill pipe φ50×1m φ50×1m

Size 2700×450×630 2700×420×610

Weight(kg) 245 300

Company Contact:

• Posted By: Beiijng Jincheng Mining Technology Co., Ltd.

• Phone: 86-10-84673566

• Address: Room 1407,BuildingA,No.13,Beiy uan Road,Chaoyang District, Beijing , Beijing , China

• Email:

• Website: https://www.jcdrill.com/

• Business Description: JCDRILL Company located in Beijing of China, specialized in research, development and produce kinds of water well drilling rigs and drilling services.

  According to customers requirements, we provide professional drilling solutions to customers.

  30% water well drill rigs of JCDRILL Series are sold in domestic market and 70% are exported to all over the world.

  JCDRILL company has own factory in Xuanhua of Hebei province located in north of China and the area of factory is more than 2570 meters with more than 242 employees.

  There is professional department to supply perfect service about drilling project.

  We also has multiple agents in different countries in the world, such as South Africa, Zambia, Colombia, Chile, Philippines, Malaysia, Spain, Russia, France and so on.

  We provide "one equipment, endless service”, that means we will supply better service from selling machines to you to the machine life is over.
