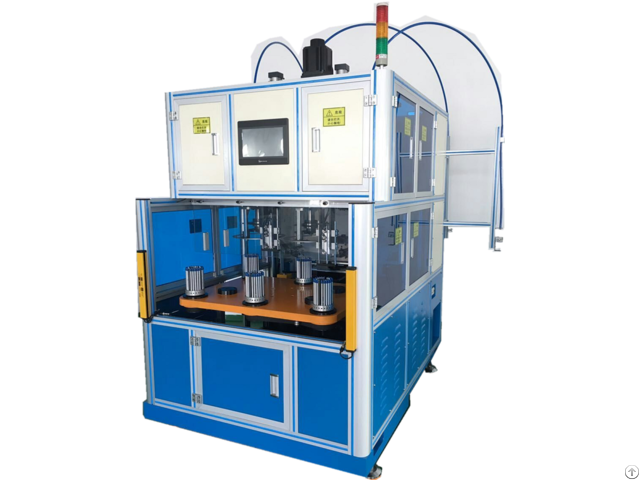

Dlm200 4 Full Automatic Four Heads Eight Working Station Coil Winding Machine - China

The machine is six winding heads with twelve operation stations, high efficiency is its feature.

The machine automatically put the coil into transfer former orderly, especially suitable for highproduction capacity requirement, high slot filling rate, small slot opening stator coil winding.

Winding mode such as auto skip, auto cutting and auto indexing could be completed at a time successively, parameter could be set in human-machine interface.

Continuous/discontinuo s winding way and meets the 2 poles, 4 poles and 6 poles coils winding.

Max stack height 65mm Max stator O.

D 120mm MAX speed 2500r/min Air pressure >=0.5MPa power supply 380V 50/60Hz 10kW Weight 4500KG

Dimension(L×W×H) 2400×1900×2250

Company Contact:

• Posted By: CANTON DELONG AUTOMATION CO.,LTD

• Phone: 13268780614

• Address: Beiwang west road no.15, Dongguan , GUANGDONG , China

• Email:

• Website: http://www.chinadelong.com/

• Business Description: Dongguan Delong Machinery Equipment Factory is located in Dongguan City of Guangdong province, China.

  The company occupies an area of over 1, 000 square meters.

  It was found in 1987, specializing in motor manufacturing industry characterized by friendly, stable, reliable, energy-saving and environmental operation with computerized control Know-how.

  With over 20 years experience, Dongguan Delong Machinery Equipment Factory has devoted itself in this field with professional techniques and experienced production staffs.

  We have developed a wide range of new products in order to meet requirements of customers.

  In 1998, the peripheral equipment of punch we developed has been widely used in large and automatic production of motors for automobiles, home electrical appliances, small and medium-sized industrial motors.

  We produce full range of electric motor manufacturing machines, including stator coil & wedge inserting machine, coil winding machine, insulation paper forming & cutting machine, slot paper insertion machine, coil forming machine, coil lacing machine and automatic production line.

  We have super-power capability in design, develop, and manufacture various specific machines as per customers requirement.

  Welcome to contact us if you have any interest of our machines.

  We are looking forward to forming successful business relationships with you in the near future.
