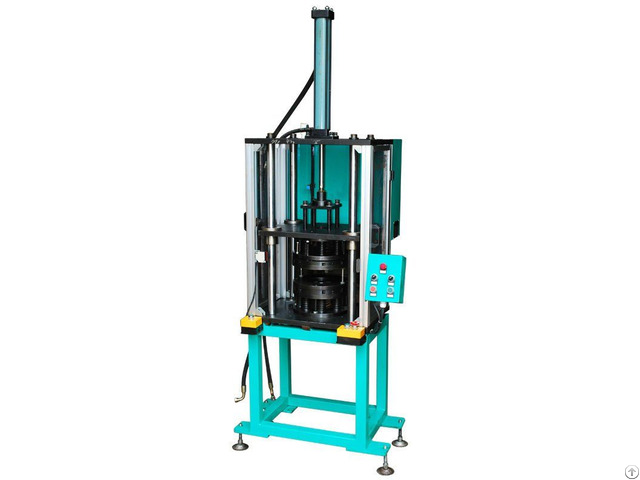

Dlm 4e Efficiency Stator Coil Forming Machine - China

Model DLM-4E

Laminated thickness of stator 10mm-120mm

Min adaptive core bore 30mm-100mm

Max outer diameter of stator 180 mm

Dispacement of oil pump 10 ML/REV

Input 380V/50Hz

Power 1500 W

Dimension 1000mm×620mm×2200mm

Weight about 700 kg With hydraulic transmission and electric integrated control.

The automatic shaper adopts the internal expanding and external contracting mechanism to shape the inner diameter, outer diameter and end height of stator and coils after wire inserting only once

It is also equipped with automatic driving and reversing mechanism for stator stations, with integral slot insulation protective device.

Compact structure, easy to operate.

Company Contact:

• Posted By: CANTON DELONG AUTOMATION CO.,LTD

• Phone: 13268780614

• Address: Beiwang west road no.15, Dongguan , GUANGDONG , China

• Email:

• Website: http://www.chinadelong.com/

• Business Description: Dongguan Delong Machinery Equipment Factory is located in Dongguan City of Guangdong province, China.

  The company occupies an area of over 1, 000 square meters.

  It was found in 1987, specializing in motor manufacturing industry characterized by friendly, stable, reliable, energy-saving and environmental operation with computerized control Know-how.

  With over 20 years experience, Dongguan Delong Machinery Equipment Factory has devoted itself in this field with professional techniques and experienced production staffs.

  We have developed a wide range of new products in order to meet requirements of customers.

  In 1998, the peripheral equipment of punch we developed has been widely used in large and automatic production of motors for automobiles, home electrical appliances, small and medium-sized industrial motors.

  We produce full range of electric motor manufacturing machines, including stator coil & wedge inserting machine, coil winding machine, insulation paper forming & cutting machine, slot paper insertion machine, coil forming machine, coil lacing machine and automatic production line.

  We have super-power capability in design, develop, and manufacture various specific machines as per customers requirement.

  Welcome to contact us if you have any interest of our machines.

  We are looking forward to forming successful business relationships with you in the near future.
