Disposable Twist Lancets Making Machine Dv 2100 2r Ce - China

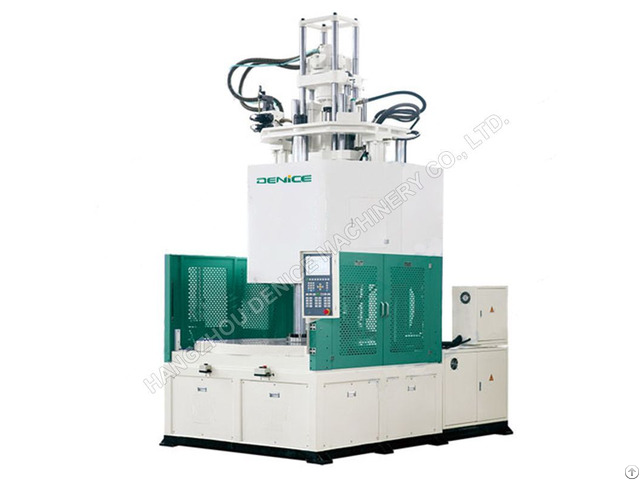

disposable Twist lancets making machine DV-2100.2R.

CE

All models of denice injection molding machines are manufactured in strict accordance with the EU machinery industry standards, fully in line with the EU CE standards, and have passed the EU CE certification.

The mechanical safety protection device and electrical safety of dynamo are all designed by European Union, which effectively protects the safety of operators and prevents safety problems and accidents.

It has been recognized and praised by customers in Europe.

Specification

Model Unit DV-2100.2R

( Injection Unit ) Screw diameter mm Ф55 Ф60 Maximum injection pressure Kg/cm2 1749 1470 Theoretical shot volume cm3 570 678 Maximum shot weight(PS) g/Oz 509(17.9) 605(21.3) Injection rate cm3/sec 180 215

( Clamping Unit ) Clamping force ton 210 Rotary Table Diameter mm 1600 tie bar distance mm - Minimum mold thickness mm 350/450(Can be customized according to customer requirements) Opening stroke mm 400 Open daylight mm 750/850(As required) Ejector force T 7(Can be customized according to customer requirements) Ejector stroke mm 100

( Others ) Pump motor power Kw 22 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 14.25 Total wattage Kw 36.25 Oil tank capacity L 800 Machine weight (approx.

) T 10 Machine dimensions(approx.

) m 3.6×2.1× 5.4

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
