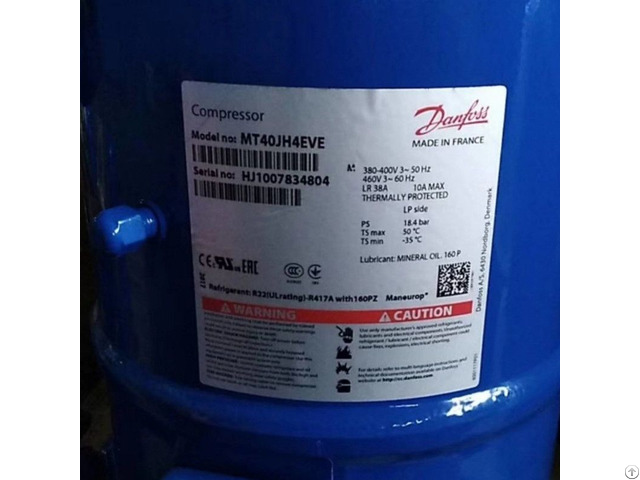

Danfoss Compressor MT40JH4EVE Approval standard CCC

CE

UL

Brand technique Reciprocating compressor

Capacity control Fixed speed

Colour Blue

Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60

Configuration code Single

Connection type Rotolock

Cylinder 1

Description MT040-4

Diameter [mm] 224 mm

Discharge connection height [mm] 68 mm

Discharge connection mounting torque [Nm] 80 N-m

Discharge connection pipe size [in] 1/2 in

Discharge connection rotolock size [in] 1 in

Discharge connection size [in] 1 in

Discharge connection sleeve pipe size [in] 1/2 in

Drawing number 8501025f

Economizer No

Factory HP [bar] 25 bar

Factory LP [bar] 25 bar

Fitting remark (shipped with rotolock version only)

Fitting sleeve ODF

Fitting standard Rotolock

Frequency [Hz] 50/60

Gauge port HP None

Gauge port LP Schrader

Generation code E

Glass mounting Threaded

Glass torque [Nm] 50 N-m

GP LP torque [Nm] 15 N-m

High side max pressure (Ps) 29.4 bar

High Side TS Max 150 °C

High Side TS Min -35 °C

High Side Volume 0.3 L

High value of nominal voltage at 50Hz [V] 400 V

High value of nominal voltage at 60Hz [V] 460 V

High value of voltage range at 50Hz [V] 460 V

High value of voltage range at 60Hz [V] 506 V

IP protection class IP55 (with cable gland)

Low side max pressure (Ps) 18.4 bar

Low Side TS Max 50 °C

Low Side TS Min -35 °C

Low Side Volume 7.5 L

Low value of nominal voltage at 50Hz [V] 380 V

Low value of nominal voltage at 60Hz [V] 460 V

Low value of voltage range at 50Hz [V] 340 V

Low value of voltage range at 60Hz [V] 414 V

LRA 38 A

MCC 10 A

Model number MT40JH4EVE

Motor protection Internal overload protector

Mounting torque [Nm] 15 N-m

Nominal cooling capacity 60 kBTU/h 43 kBtu/h

Nominal cooling capacity at 50Hz 9.4 kW

Nominal cooling capacity at 60Hz 12.6 kW

Number of starts per hour [Max] 12

Oil charge [L] 0.95 L

Oil equalization 3/8'' flare SAE

Oil equalization torque [Nm] 30 N-m

Oil reference 160P

Power connections Spade

Refrigerant R22

Refrigerant charge [kg] [Max] 2.5 kg

Relief valve None

Rotational speed at 50Hz [rpm] 2900 rpm

Rotational speed at 60Hz [rpm] 3500 rpm

Segment usage Air conditioning

Refrigeration MT

Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets

Shipped instructions Installation instructions

Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil Initial oil charge

Suction connection height [mm] 263 mm

Suction connection mounting torque [Nm] 90 N-m

Suction connection pipe size [in] 5/8 in

Suction connection rotolock size [in] 1 1/4 in

Suction connection size [in] 1 1/4 in

Suction connection sleeve pipe size [in] 5/8 in

Swept volume [cm3] 67.89 cm³

Technology Reciprocating

Test dif [bar] [Max] 30 bar

Test HP [bar] [Max] 30 bar

Test LP [bar] [Max] 25 bar

Torque earth [Nm] 3 N-m

Torque power [Nm] 3 N-m

Total height [mm] 356 mm

Type MT

Type designation Compressor

Viscosity [cP] 32 cP

Winding resistance for three-phase compressors with identical windings [Ohm] 4.05 Ohm
