Copper Wire Annealing And Tinning Machine - China

PRODUCT OVERVIEW:

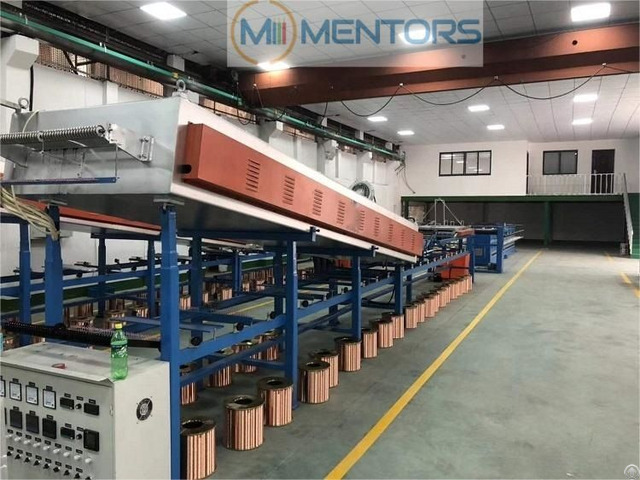

Copper Wire Annealing and Tinning machine is special used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.

Finished wire is can be winded by small plastic bobbin or bigger 630 spool .

PRODUCT SPECIFICATIONS:

1: Machine type: SY-40H/6M

2: Length of annealing tank: 6m

3: Wire dia: Φ0.10-Φ0.50mm

4: Pay-off stand: By brush wire

5: Max.

speed: 300m/min

6: Tin-coating type: Dual tank by heater(optional)

7: Pay-off bobbin size: Φ300 or customized

8: Spool bobbin size: PT5-PT25 or customized

9: Take-up type: Single spooler drive by torque motor

10: Annealer: Continuous annealing by heater

11: Total power consumption: 65KW

12: Machine dimension: 20000L×2200W×1900Hmm

Company Contact:

• Posted By: Zhangjiagang Mentors Machinery Co.,Ltd

• Phone: 008615252617481

• Address: Yangshe Town, Zhangjiagang , Jiangsu Province, China

• Email:

• Website: https://www.mentorsmachinery.com

• Business Description: Mentors is a professional manufacturer and exporter of wire drawing machine & cable making machine in wire and cable field since 2008.

  Mentors Group is able to provide a whole solutions.

  Also our engineer team with 23 years of R&D and production experience in the field of wire drawing machine and other cable making machine.

  Cost-effective,highly efficient,reliable and easy-to operate machine is what we deliver.

  The independent research and development Copper Wire Drawing Machine we have already supplied to world well-know company such as Sumitomo, Jiangxi Copper Corporation(Fortune global 500 companies).

  And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without operator, to help our customers develop faster.

  Mentors will continue to combine the advanced technology with China manufacturing advantage, provide wire drawing machine and cable manufacturing machine with European Standard to worldwide customers.
