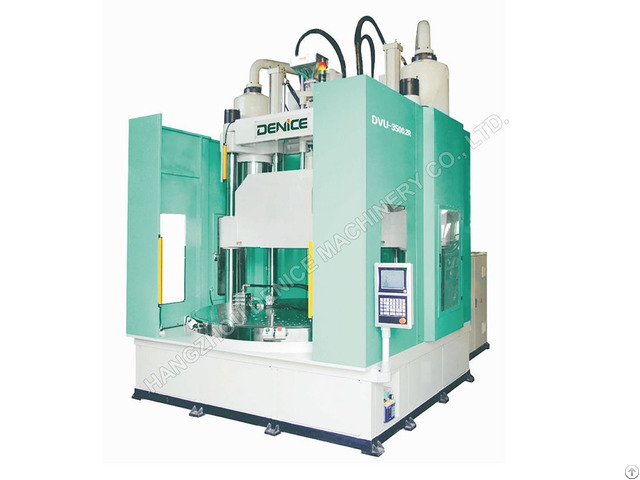

Cooker Handle Making Machine Dvu 3500 2r 2c - China

cooker handle making machine DVU-3500.2R.

2C

DVU-3500.2R.

2C

lower height of the working table design, Multi station rotary table machine, facilitates the operation of staff, two injection units two palstic material effectively reduces the height of the working table and the whole height of the vertical injection molding machine, facilitates the operation of staff, the replacement of convenient molds, and improves production efficiency and saves space.



DENICE cooker handle making machine Specification Model Unit DVU-3000 DVU-3500 DVU-4500

Injection Unit Screw diameter mm Ф50 Ф55 Ф60 Ф50 Ф55 Ф60 Ф55 Ф60 Ф65 Maximum injection pressure Kg/cm2 2150 1777 1493 2150 1777 1493 2083 1750 1491 Theoretical shot volume cm3 491 594 707 491 594 707 618 735 863 Maximum shot weight(PS) g/Oz 454(16) 549(19.4) 653(23) 454(16) 549(19.4) 653(23) 571(20.1) 679(24) 797(28.1) Injection rate cm3/sec 196 237 282 220 267 317 258 307 361

Clamping Unit Clamping force ton 300 350 450 Mold Size mm 1100×850 1100×850 1300×1050 Minimum mold thickness mm 400 450 450 Opening stroke mm 450 450 450 Open daylight mm 850 900 900 Ejector force T 8 8 8 Ejector stroke mm 150 150 150

Others Pump motor power Kw 30 37 30+37 Hydraulic system pressure Kg/cm2 140 140 140 Barrel heating power Kw 16.8 16.8 19.55 Total wattage Kw 46.8 53.8 86.55 Oiltank capacity L 1000 1100 1400 Machine weight (approx.

) T 18 25 30 Machine dimensions(approx.

) m 3.5×2.1×4.5 3.5×2.1× 4.7 4.0×2.5× 4.9

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
