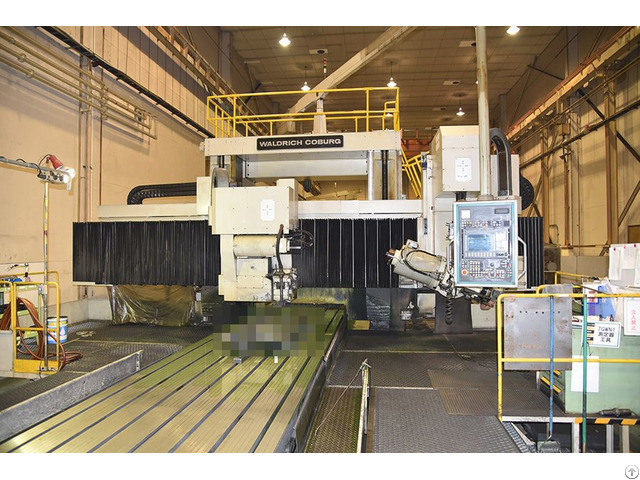

Coburg Cnc Surface Grinder - Japan

Machine Specifications Table width：1500　mm Grinding：2000　mm Clearance between the column covers：2220　mm Grinding height：1500　ｍｍ Grinding length：7000　ｍｍ Table Drive　(Hydraulic) Permissible table load：5, 000　kg/ｍ Max.

：13, 000　kg Table speed infinitely variable ：1-45　ｍ/min Creep speed can be selected directly：5　ｍ/min Peripheral Grinding Head P　30 Max.

power of grinding motor available from a spindle RPM of 700 ：50　kw Max.

dimensions of grinding wheel：600 dia x 150　ｍｍ RPM infinitely variable: 500-1100　RPM Horizontal Travel Feed：1-12, 000　mm/min Step feed：1-200　mm Jogging feed in steps of 0.001mm, feed range：0.001-0.099　mm Vertical Trvel Travel：250　mm Feed：0.5-1500　mm/min Jogging feed in steps of 0.001mm, feed range：0.001-0.099mm Dressing Device Indexing range of dressing slide：±60° "(Precise indexing in 5 degree increments is ensured by a ""Hirth""serrated coupling)"Dressing speed infinitely variable：50-350mm/min Number of dressing diamonds：1 Universal Grinding Head：U　15 Max.

power of grinding motor available from a spindle RPM of 950 ：20kw Max.

dim.

Of peripheral grinding wheel ：600 dia.

　ｘ　100　mm RPM infinitely variable ：500-2, 500 RPM Indexing range of grinding spindle ：±110° "(Precise indexing in 1 degree increments is ensured by a ""Hirth"" serrated coupling)"Indexing speed：360°/min Horizontal Travel Feed：1-12, 000　ｍｍ/min Step feed：1-200　ｍｍ Jogging feed in steps of 0.001mm, feed range：0.001-0.099　ｍ ｍ Vertical Travel Travel：1, 000　ｍｍ Feed：0.5-2, 000　mm/min Step feed：1-200　mm Jogging feed in steps of 0.001mm, feed range：0.001-0.099　mm Number of preset diamonds：5 Wet Grinding Equipment Delivery of coolant pump：150　L/min "Relation between coolant temperature and ambient temperature can be controlled to a toerance of "：Centigrade±0.5 Coolant：Water emulsion
