Coaxial And Triaxial Cable Stripping Machine - China
price: 5165.00 Dollar US$

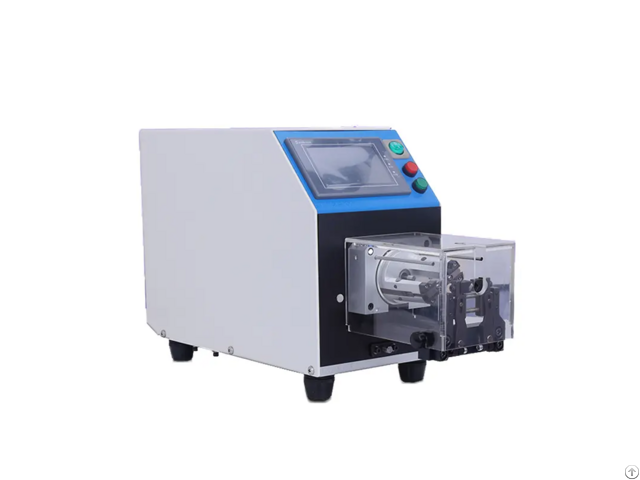

Coaxial and Triaxial Cable Stripping Machine
The Coax Strip HL-8515 is a semi-automatic, programmable multi-step stripping machine for coaxial, triaxial, multi-conductor cable and single conductor wire.
This benchtop unit can easily process coaxial and triaxial cables up to 15 mm outer diameter and strips lengths up to 85 mm .
1 - High precision rotary stripping up to 9 steps
2 - Fast processing speed
3 - Menu guided programming with user-friendly graphical display
4 - Max.
Diameter mm 15 mm
5 - Diameter Increments 0.1 mm
6 - Max.
Stripping Length 85 mm
7 - Stripping Length Increments 0.1 mm
8 - Cable Clamping Motor driven with programmable clamping force
9 - Stripping Steps 9 (depending upon cable type and programming)
10 - Dimensions (L xW x H) 525 x 186 x 278 mm
Company Contact:
- Phone: 18713510256
- Address: No.28 dongda road, shatou village, chang'an town, dongguan city, guangdong province, China. , guangdong , China
- Email:
- Website: http://www.hilong-e.com/
Published date: August 14, 2023
- Business Description: Hilong Machinery Co ., Limited is a manufacture and trader specializod in the research development and production of automatic equipments , such automatic terminal crimping machine , wire cutting and striping machine , tube cutting machine , wire stripper , labeling machine ., tape cutting machine ; etc .
