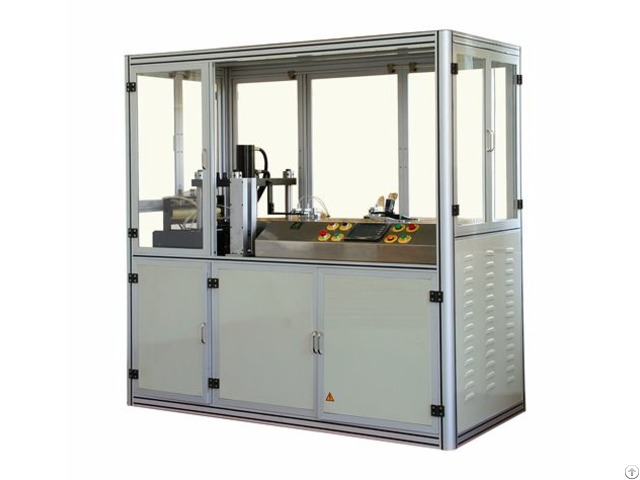

Cnj 3a 4a 5aplc Automatic Punching Machine - China

Function and Application Introduction

This model of punch machine is controlled through PLC from Mitsubishi/Omron of Japan and adopts the interface of man-machine of LC industry touch screen of color DSTN, WeinView MT508S 7.7" from Taiwan.

The material feed system adopts the servomotor of Mitsubishi/Omron and high precision ball screw as well as plane guide imported from Japan.

It moves smoothly, the move distance is accurate.

It uses the high sensitive photoelectric recognizers from TAKEX of Japan to read the position marks.

Positioning is accurate and reliable.

The hydraulic pump from Taiwan is low noise, large flow.

The hydraulic valves from YUKEN of Japan and American sealing are long life for using.

The die of hydraulic cylinder is dieing smoothly and steady, low noise.

The mould is made by imported mould steel.

The software function is strong, you can set 8 cards to the different step of distance, and ensure punching precision even in the situation of material distortion or mechanism worn.

Punching speed is 30% higher than similar products.

Technical parameter:

suitable for 0.3~1.0mm PVC and other plastic materials

Punch layout 3x7, 3x8, 4x7, 4x8, 5x5

The number of punches 3/4/5

Max punch strength 0~5000 kg adjustable Cylinder travel 18mm

Hydraulic oil tank volume 120liter

Air source 0.6 MPa

Air consumption 50 L/min

Power source AC380V 50/60Hz

Power 4.5kW

Max.

Speed 2000-20000cards/hour

Dimension L1850×W870×H1850mm

Weight Appr.

1000 kg
