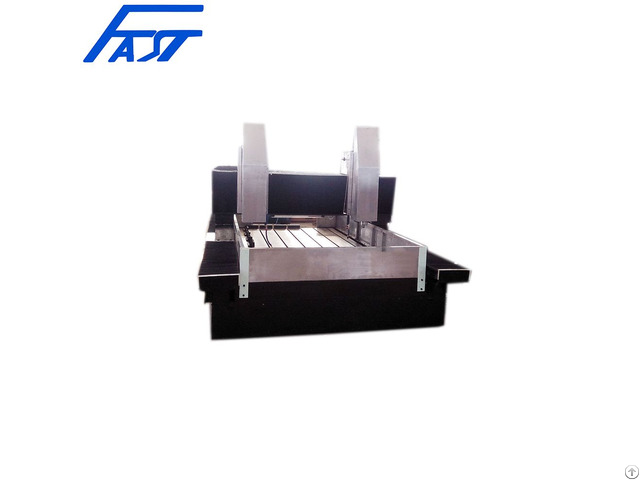

Cnc Sieve Plate Drilling Machine Pz2012 - China
price: 31000.00 Dollar US$
APPLICABLE INDUSTRY:
This machine is specially used for drilling machine for sieve plates.
This machine is mainly used for high efficiency drilling of small holes on paper pulp sieve plates (stainless steel).
The machine can equip with one or several high-speed drilling spindle.
COMPOSITION:
This machine is composed of fixed bed worktable, movable gantry, vertical sliding plate, drilling heads, cooling system, automatic lubrication system and controlling system.
TECHNICAL DATA
Max.
Workpiece Dimension (mm): 2000*1600
Distance between the bottom of the spindle to work table (mm): 10~240
Range of Drilling Diameter: Φ1.5~Φ5
Type of Drilling Head: Servo motor Drilling head
Drilling Speed (mm/min): 50~220 (30~120 for stainless steel plate)
Quantity of Drilling Head: 1 OR 2
Drilling Axis: 6
Motor power of Drilling Head (kW): 2.2kW
Max.
Rotating Speed of Spindle : 9800
Vertical Stroke of Z Axis (mm): 220
Z Axis Servo Motor Power (kW): 1.0
Stroke of X Axis (mm): 2000
X Axis Servo Motor Power (kW): 1.5
Stroke of Y Axis (mm) : 2000
Y Axis Servo Motor Power (kW): 1.0
Quantity of CNC Axis: 5
Net Weight (kg): 5500
Welcome to Inquiry!
Tel: +86-15098878331
WhatsApp: +86-15098878331
Wechat: lvxiaoran001
Email: lfqft@163 - com
chelsea@fas techcnc.
com
Company Contact:
- Posted By: Jinan Fast CNC Machinery Co., Ltd
- Phone: 0086-15098878331
- Address: NO.8521 WEST JINGSHI ROAD HCANGQING DISTRICT, JINAN,shandong,China, JINAN , shandong , China
- Email:
- Website: http://www.jnfate.com
Published date: June 22, 2021 - Modified date: June 22, 2021
- Business Description: JINAN FAST CNC MACHINERY CO., LTD is devoted to design and manufacture complete processing machines working on the H-beam, U-beam, angles, plates and tubesheets, flanges and other steel profiles with punching, drilling, milling, boring function.
JINAN FAST CNC MACHINERY CO., LTD is a professional manufacturer of profile and plate material auto-processing line and machinery.
MAIN PRODUCTS: CNC full-automatic angle steel processing line, CNC joint plate punching& drilling machine, High-speed CNC drilling& milling machine for tube sheet/flange (PZG), CNC Beam Drilling machine (SWZ), CNC plate drilling& milling machine，CNC drilling& milling tapping machine, Gantry type drilling& milling& boring machine center, double-column rotation angle band-sawing machine, Angel notching machine, (Rolling type) Angle straightening machine, Hydraulic angle cutting machine, Hydraulic marking machine, Plate chamfering ( beveling) machine, Universal& special purpose hydraulic machines, etc.
Focusing on customers value and requirements, JINAN FAST CNC MACHINERY CO., LTD is always ready to establish friendly business relationship with old and new customers for a brilliant future.
Other Business--Precision Hole Processing
Drilling sieve plate processing such as paper sieve plates, pulp filter sieve plates, mud extruder sieve plates, mining machinery sieve plates, and environmental protection equipment separating sieve plates, dehydration sieve plates, and vibration sieve plates.
Drilling pressure container tube plates and stainless steel plates.
