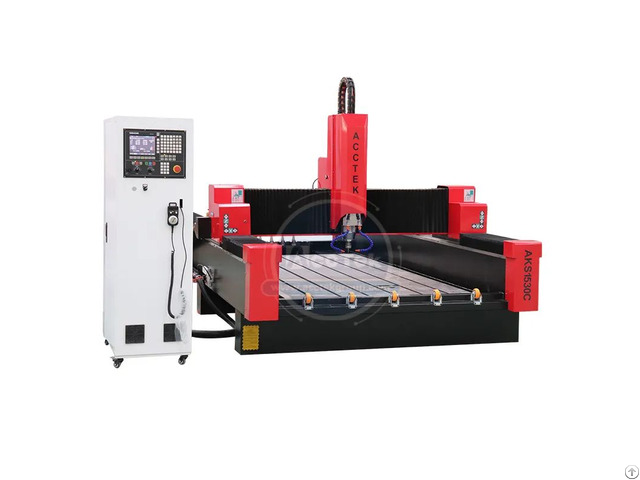

Cnc Granite Marble Stone Tombstone 3 Axis Atc - China
price: 1200.00 Dollar US$
Parameter of cnc router machine No Description Parameter
1 X, Y, Z Working Area 1500x300x300mm
2 X, Y, Z Repositioning Accuracy ±0.05mm
3 Table surface T steel and hard PVC
4 Frame Welded structure
5 X, Y axis transmission Rack and pinion gear
6 Z transmission Ball Screw
7 Rail Configuration Taiwan Hiwin square guide rail
8 Max.
Traveling Rate 25000mm/min
9 Max.
Working Speed 15000mm/min
10 Spindle Power 5.5kw water cooling ATC spindle
11 Spindle Speed 24000RPM
12 Drive Motors Leadshine easy servo system (Opitional Yaskawa servo motors)
13 Working Voltage AC380V/50Hz/3PH
14 Command Language G Code
15 Operating System Weihong NK260 ATC control System (Opitional: NC studio for pc)
16 Computer Interface USB
17 Software Compatibility Type3, Ucancam, Artcut (Optional )
18 Packing Size Wooden case
19 N.W. 1500Kg/1800kgs
20 Capacity ≥2000kgs
