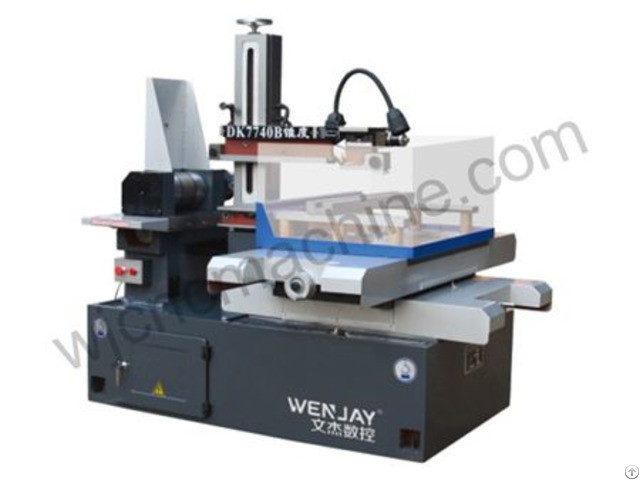

CNC Electric Spark Wire Cutting Machine

CNC Cutting Machine Tool

Type unit DK7740F DK7750 DK7750B DK7750F DK7763 DK7763F

Worktable Size (W*L) mm 480×820 564×904 615×950 594×1064 700×1060 700×1200

X, Y-axis trip(Y×X) mm 400×630 500×630 550×690 500×800 630×800 630×1000

U, V-axis trip(U×V) mm 70×70

Max load weight kg 700 800 900 1000 1100 1300

Max linear cutting thickness of Super Machine Tool mm 500mm(430) 600mm(530) 600mm(530) 600mm(530) 600mm(530) 600mm(530)

Machined taper/work piece thickness 12°/80mm

Z-axis elevation mode Manual/electric elevation

Type of guide track Slide guide

Electrode wire diameter range mm Ф0.15~0.20mm

Wire speed m/sec 1~11.4m/sec 7 frequency conversion adjustable

Machining accuracy mm ≤0.015

Max cutting efficiency of CNC Machine Tool mm²/min ≥120

Optimum surface roughness um Ra≤2.5

Control mode X, Y, U, V stepper motor

Number of control axis Four-axis linkage

Min instruction unit mm 0.001

Power supply of CNC machine tool control system Three-phase four-wire 380VAC/50HZ

Max operating current A 12

Machine tool power consumption kw ＜2

Working fluid DX-1 DX-4 Nanguang-1

Working fluid tank volume L 55

Work liquid filtrate way Strainer

Host weight kg 1500 1900 2000 2100 2600 2800

Host outline size mm 2100×1500×1400 2100×1700×1740 2150×1800×1740 2400×1800×1740 2400×2250×1650 2400×2400×1650
